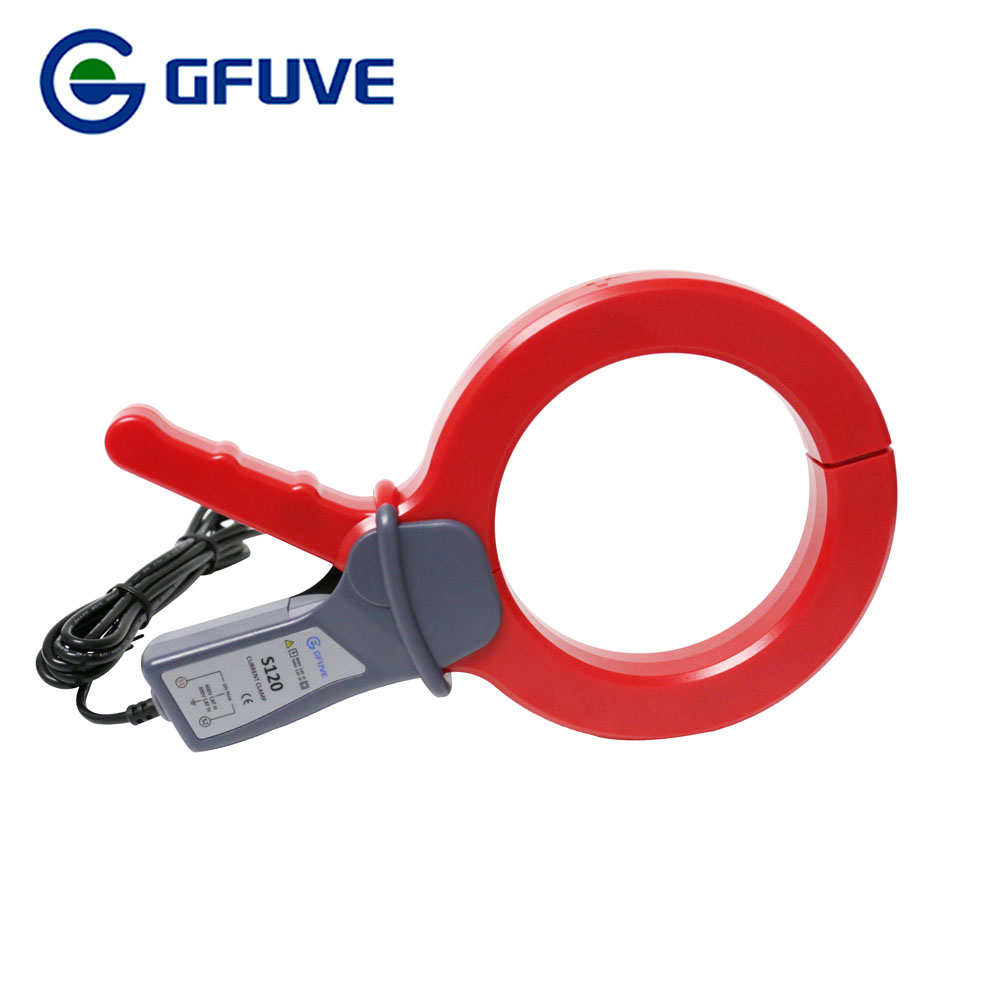

2000A Permalloy Clamp On Current Transformer With 120mm Jaw

S120 20K HZ BANDWIDTH 2000A CLAMP ON CURRENT TRANSFORMER

The S120 is a general purpose 2000A AC Clamp current probe transformer designed for use with DMMs, cable fault analysis and loggers instruments that have a current input. It has a 1000:1 or 2000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The S120 has an integral 2.5m or 5m lead terminated. The rounded jaw design on this clamp probe makes it well-suited for cable fault analysis applications where high accuracy and low phase shift and wide frequency.

Clamp-On Current Transformers GFUVE® maintains a large in-stock inventory of Clamp-On Current Transformers including AC, Micro Clamp and Clamp-On CT Accessories for most common applications. Below is a list of all clamp-on current transformers available through GFUVE material, however, not all models are in-stock.

Clamp-On Current Transformers are the one-handed operating solution for temporary energy audits or long-term energy studies. The GFUVE 1000A Clamp On Current Transformer is specifically designed to offer broad utility in a compact shape. These CTs deliver high-accuracy, high-sensitivity, versatility, and low phase shift.

APPLICATIONS

Power quality analyzer(PQA)
power and harmonic meters
Energy meter calibrator
Cable Fault Analysis
Measuring around cable bundles
Power load monitoring
Earth resistance meter
Large industrial loads

FEATURES

Measurement range of 10mA to 2000A AC
Improved ergonomic design & easy operation
High content nickel metal permalloy core
Frequency 10-2MHz
Holding wire diameter: φ120mm
Conforms to EN 61010, 600V CAT III
Transformation ratio: 1000:1, 2000:5
Low phase shift for power measurement
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
UL, CE mark

PARAMETERS

Electrical parameters
Ratio	1000: 1 or 2000:5 (customized)
Accuracy class	0.1%, 0.2%, 0.5%
Primary current	0 - 2000A AC
Secondary current	0-2A or 0 - 5A AC (customized)
Secondary voltage	0-2V AC (customized)
Max. Cont. Input current	2400A
Over voltage category	CAT III 600V
Output signal (AC current)	500mA, 1A,2A,5A AC at nominal input current
Output signal (AC voltage)	1V, 2V, 10V AC at nominal input current
Frequency range	10Hz-2MHz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-40°C to +55°C
Output	2.5 meter cable with D01 connector or BNC
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1, IEC61869-2
Installation	clamp type
Output mode	lead output(2.5m, 5m or 10m)
Accuracy (2000A Range)
0-10A	≤0.5%
10-100	≤0.2%
100-2000A	≤0.1%
Phase Shift(2000A Range)
0-10A	≤0.5°
10-100	≤0.2°
100-2000A	≤0.1°
Mechanical parameters
Dimensions (L x W x H) (mm)	178 x 290 x 30
Weight (g)	1200
Holding wire diameter (mm)	φ120
Max. jaw opening (mm)	120
Jaw color	Red & Grey
Material	PC+ABS, UL94 V0
