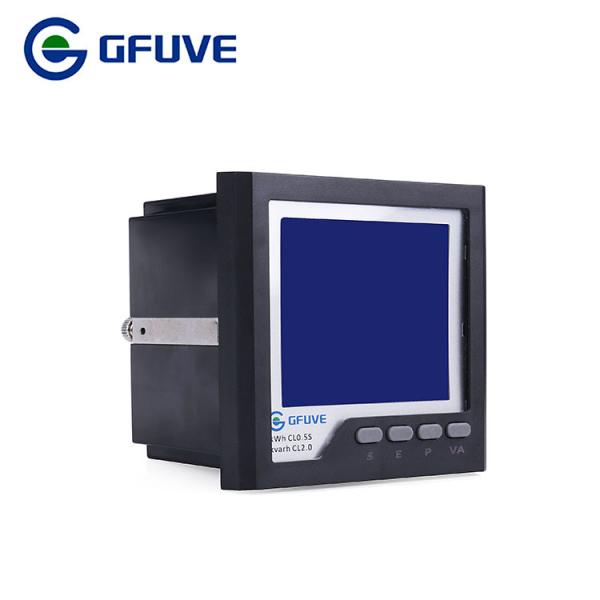

Data Logging 0.5S Class RS485 Harmonic 3 Phase Power Meter

Ask Lasest Price
Brand Name :	GFUVE
Model Number :	FU2200A 0.5S 1000A480V
Certification :	CNAS, CE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	20000PCS/MONTH
Delivery Time :	3DAYS

Add to Cart

Product Details
Company Profile

Data Logging 0.5S Class RS485 Harmonic 3 Phase Power Meter

FU2200A three phase digital power harmonic meter from 2 to 63 times harmonics & recorder

FU2200A 0-480V digital power harmonic meter with PC software is a three-phase multifunction power and energy harmonics meter manufactured by GFUVE. It provides excellent value for monitoring power and energy management systems. It may be used as data gathering devices for intelligent power distribution or plant automation systems. All monitored data is available via a standard digital RS485 communication port, which is based on the Modbus RTU protocol.

GFUVE Power and Harmonics Analyser Model FU2200A can Analyze, Measure, Monitor & Data Log values of Power Quality & Consumption (Energy). Capable of analyzing IT standby power consumption to the maximum demand of factory. It comes with a user friendly application software that increases the utility & performance of this instrument.

It can measure harmonics of voltage and current from 2 to 63nd times. and analysis wave distortion.

The meter measures fundamental total harmonic distortion (THD) and individual harmonics, which can degrade the quality of the power being supplied by the system. Automatic detection mode selects voltage or current function based on input. The peak hold reading displays the maximum measurement of a current or voltage surge.

Applications

Metering of distribution feeders, transformers, generators, capacitor banks and motors
Medium and low voltage systems
Commercial, industrial, utility
Harmonics analysis
Power quality analysis
Data logging
Monitoring system

Parameters

Electrical parameters
Power Supply (AC/DC)	AC85-400V / DC85-330V Power consumption: <4VA
Measurement Parameters	Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power(W); Reactive Power(Q); Apparent Power(S), 2^nd to 49^th harmonics(option)
Harmonics	Total harmonics ratio of phase-voltage Total harmonics ratio of current 2^nd to 63^st harmonics ratio of phase-voltage 2^nd to 63^st harmonics ratio of current
Maximum Value & Minimum Value	Voltage, current, frequency, active power, reactive power, apparent power,demandP,demandQ, demandS.
Computation	Forward active power energy Reverse active power energy Forward active power energy Reverse reactive power energy
Measuring Range	0-800V, 0-10A, 45-65Hz, -1 ~ 0 ~ 1
Measuring Accuracy	Voltage: 0.5%RD±0.05%FS Current: 0.5%RD±0.05%FS Active Power: 0.5%RD±0.05%FS Reactive Power: 1.5%RD +0.05%FS Apparent power: 0.5%RD +0.1%FS Power Factor: 0.5%RD Frequency: 0.05%RD Active Energy: 0.5%
Maximum Demand	Ia, Ib, Ic, ΣPtotal, ΣQtotal, ΣStotal, 15 minutes
Display	Blue back-lit LCD Display 5 display figures 4 operation keys
Communication	Support RS-485 interface port, 32 (128) Networking ModBus-TCP/IP SNMP communication protocol Ethernet 10/100M port (RJ45)
Memory	2M onboard memory,can be extended to 16M. Data looger interval can set by end users from 1min to 60min.The default is 15min. You can read the data through a PC, also you can select the data to diaplay and store from software.
Programmable	Measuring system: 3P4W/3P3W etc Transformation Ratio: PT 1-10000; CT 1-10000
Energy Pulse	Provides active & reactive energy pulse output Pulse parameters can be choosed Range: 0.1-10000kWh/kvarh Dry contact output (1Ax100V)
Connection Mode	3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P3W, 1P2W
Baud	1200-57600, Standard 38400
Mechanical parameters
Dimensions (L x W x H) (mm)	96x96x12.8
Mounting	Panel mounting Trepanning: 92x92mm The thickness of installation: 51mm
Environmental conditions
Temperature	-5 to +50 °C
Humidity	20%-95%RH, without condensation
Warranty	Three years warranty

FEATURES

True-RMS measuring parameters
ANSI and IEC 0.2 accuracy class
Power quality analysis
4 quadrant energy
2MB onboard memory, can be extended to 16M
Data logging
High-speed RS485, Ethernet port (option)
Measure individual harmonics from 2^nd to 63^st (option)
TOU, 4 Tariffs, 6 Seasons, 6 Schedules
Three years warranty
With PC management software; web browse data
