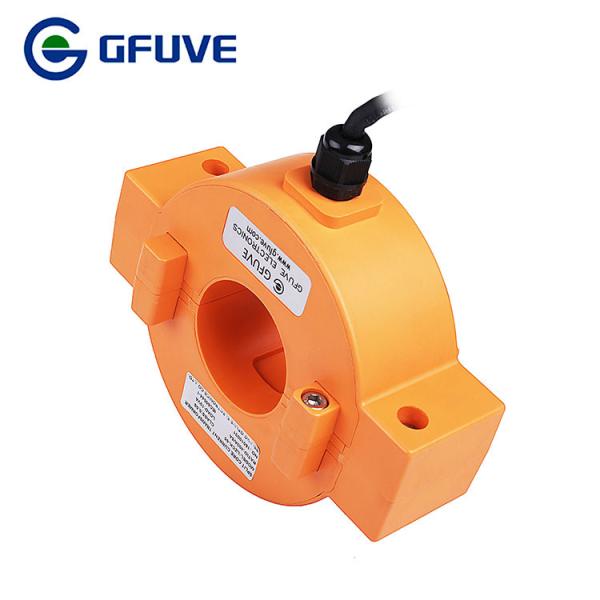

LZCK-55 5m cable IP68 Waterproof Clamp Outdoor Split-core CT 200/5A
0.5s
LZCK-55 IP68 Outdoor Split-core CTs are designed to meet the
growing demand for outdoor installation. The working temperature
and humidity is high from -40°C to 55°C. Parameters will be
measured and compared without power supply cut-off on account of
the split core, so it's popular in the energy management system and
power factor correction. It can be used along with many kinds of
instruments and devices. and it can be used for power transformer
monitoring.
GFUVE outdoor split-core ct should be used below 600 volts and 10KV
, ant it can customize output with A, mA, V, mV.
If you cannot find information you need or would like assistance,
please contact us today. We have designed many more probes than
those shown in this catalog, and we manufacture in Beijing, China.
Features
Measurement range of 1mA to 1200A AC
Large jaw opening accommodates conductors up to 55mm
Improved ergonomic design and easy operation
High content nickel metal core
Conforms to EN 61010, 600V CAT III
Low phase shift for power measurement
Designed for DMMs, recorders, loggers, oscilloscopes, power and
harmonic meters
UL, CE mark
ELECTION GUIDE
| Model | Primary rated current | Rated load | Aperture (mm) | Description (mm) | Weight (kg) | Material | Water-proof |
|---|
| LZCK-55 | 100-1500A | ≤10VA | φ55 | 180×138×52 | 2 | PC | IP68 |
| LMCK185-10 | 300-3000A | ≤25VA | φ185 | 350×283×55 | 4.5 | PC | IP68 |
Applications
Power quality measuring
Large industrial loads
Measuring around cable bundles
Power load monitoring
Waveform analysis
Harmonics measurement
PARAMETERS
| Technical parameters |
|---|
| Standards | IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
| Accuracy Class | 0.5S, 0.5%, 1%, 3% |
| Range of primary rated current | 100-1000A |
| Range of Rated load | ≤10VA |
| Rated frequency | 50/60Hz |
| Rated secondary current | 5A or 1A |
| Rated short-time thermal current | 40kA, 1S |
| Rated continuous thermal current | 150%I1n |
| Secondary winding power frequency withstand voltage | 3kV, 1min |
| Safety Factor Rating | (FS) <10 |
| Output signal | 1A, 5A, 333mV, 1V or 5V(customized) |
| Cable length | 2.5m, 5m, 10m(customized) |
| Flame retardant ABS plastic shell inside, jaw waterproof apron. |
| Mechanical parameters |
|---|
| Aperture (mm) | Φ55 |
| Dimensions (W×D×H) (mm) | 180×138×52 |
| Weight (kg) | 2 |
