    45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port

    Ask Lasest Price
    Brand Name : GFUVE
    Model Number : GF311
    Price :
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000Units/Month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    45 - 65hz Power Quality Analyzer 0.5% Accuracy With Rs232 Communication Port

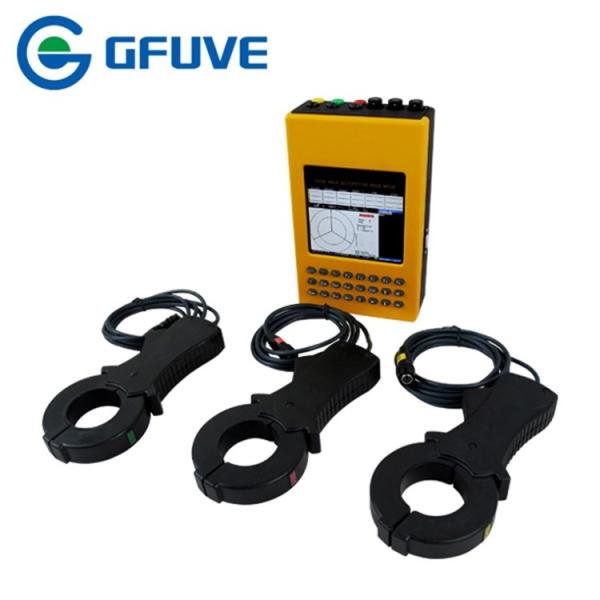

    GFUVE GF311 Class 0.5 Basic Three Phase Power Quality Analyzer


    FEATURES

    • Simultaneously measuring three-phase voltages, current, power, frequency, power factor, phase, etc.
    • Display vector map for the use of user directly.
    • Horizontal liquid crystal big screen TFT displays all electric parameters;
    • The smallest current it can measure is 1 mA, 2 mA above can display vector diagram;
    • Small volume, light weight and the operation is simple, convenient;
    • DSP digital signal processing chip, wide measuring range, high accuracy, good stability;
    • It can store data; data can be using computer software to upload for management;
    • Range switches automatically, software for be calibrated.

    PARAMETERS

    Electrical parameters　
    Accuracy class0.5%
    Power supplyAC 85-265V 50/60Hz or Li-battery 5000mAh
    Communication PortRS232
    Warming-up time< 5min
    Power consumption≤5VA
    Voltage measurement　
    U1, U2, U3 Range0-480V
    Resolution0.001V
    Accuracy0.2%
    Current measurement　
    I1, I2, I3 Range1mA-10A or 50mA-200A or 50mA-500A
    Resolution0.5mA
    Accuracy0.5%
    Active power measurement　
    Active accuracy0.5%
    Reactive power measurement　
    Accuracy1%
    Phase measurement　
    Range0°-359.9°
    Resolution0.001°
    Accuracy0.1°
    Frequency measurement　
    Range45-65Hz
    Resolution0. 001Hz
    Accuracy0.01Hz
    Power factor measurement　
    Range-1 to 0 to +1
    Resolution0.0001
    Accuracy0.01
    Mechanical parameters　
    Dimensions (W×D×H) (mm)245×162×60
    Weight (kg)1 (mains)
    6.5 (appendix and box)
    Environmental conditions　
    Working temperature-10°C to 55°C
    Working humidity15%-85%RHD
    Storage temperature-25°C to 70°C
    Storage humidity5%-95%RHD
