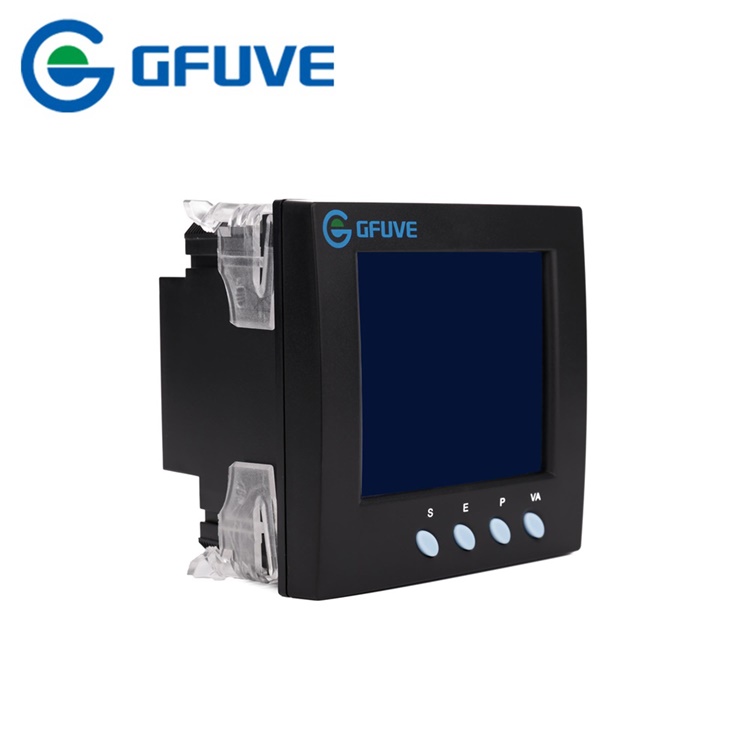

Modbus RTU RS485 Internet Three Phase Power Meter Panel Mounting 500g Weight

Three Phase Modbus RTU RS485 Internet Panel Mounting Digital Stages Power Meter With Data Logger

FU2200A 0-480V digital stages power meter with PC software is a three-phase multifunction power and energy meter manufactured by GFUVE. It provides excellent value for monitoring power and energy management systems. It may be used as data gathering devices for intelligent power distribution or plant automation systems. All monitored data is available via a standard digital RS485 communication port, which is based on the Modbus RTU protocol.

A highly specialized 3 phase meter with power quality tools such as waveform capture, event logging and more. The Acuvim IIW meter is ideal for granular 3 phase metering.

A three-phase power meter needs to deal with more current and voltage information compared to a single-phase power meter and requires analog input for a maximum of seven channels and high processing capacity for power calculation. Further, the smart power meter needs to meet the security requirements of the DLMS international standard and so on.

Features

True-RMS measuring parameters
ANSI and IEC 0.5s accuracy class
Power quality analysis
4 quadrant energy
2MB onboard memory, can be extended to 16M
Data logging
High-speed RS485, Ethernet port (option)
Measure individual harmonics from 2nd to 63th (option)
TOU, 4 Tariffs, 6 Seasons, 6 Schedules
Three years warranty
With PC management software; web browse data

Parameters

Electrical parameters
Power Supply (AC/DC)	AC85-400V / DC85-330V Power consumption: <4VA
Measurement Parameters	Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power(W); Reactive Power(Q); Apparent Power(S), 2nd to 63th harmonics(option)
Harmonics	Total harmonics ratio of phase-voltage Total harmonics ratio of current 2nd to 63th harmonics ratio of phase-voltage 2nd to 63th harmonics ratio of current
Maximum Value & Minimum Value	Voltage, current, frequency, active power, reactive power, apparent power,demandP,demandQ, demandS.
Computation	Forward active power energy Reverse active power energy Forward active power energy Reverse reactive power energy
Measuring Range	0-480V, 0-10A, 45-65Hz, -1 ~ 0 ~ 1
Measuring Accuracy	Voltage: 0.5%RD±0.05%FS Current: 0.5%RD±0.05%FS Active Power: 0.5%RD±0.05%FS Reactive Power: 1.5%RD +0.05%FS Apparent power: 0.5%RD +0.1%FS Power Factor: 0.5%RD Frequency: 0.05%RD Active Energy: 0.5s
Maximum Demand	Ia, Ib, Ic, ΣPtotal, ΣQtotal, ΣStotal, 15 minutes
Display	Blue back-lit LCD Display 5 display figures 4 operation keys
Communication	Support RS-485 interface port, 32 (128) Networking ModBus-TCP/IP SNMP communication protocol Ethernet 10/100M port (RJ45)
Memory	2M onboard memory,can be extended to 16M. Data looger interval can set by end users from 1min to 60min.The default is 15min. You can read the data through a PC, also you can select the data to diaplay and store from software.
Programmable	Measuring system: 3P4W/3P3W etc Transformation Ratio: PT 1-10000; CT 1-10000
Energy Pulse	Provides active & reactive energy pulse output Pulse parameters can be choosed Range: 0.1-10000kWh/kvarh Dry contact output ( 1A x 100V )
Connection Mode	3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P3W, 1P2W
Baud	1200-57600, Standard 38400
Mechanical parameters
Dimensions ( L x W x H ) ( mm )	96x96x12.8
Mounting	Panel mounting Trepanning: 92x92mm The thickness of installation: 51mm
Environmental conditions
Temperature	-5 to +50 °C
Humidity	20%-95%RH, without condensation
Warranty	Three years warranty
