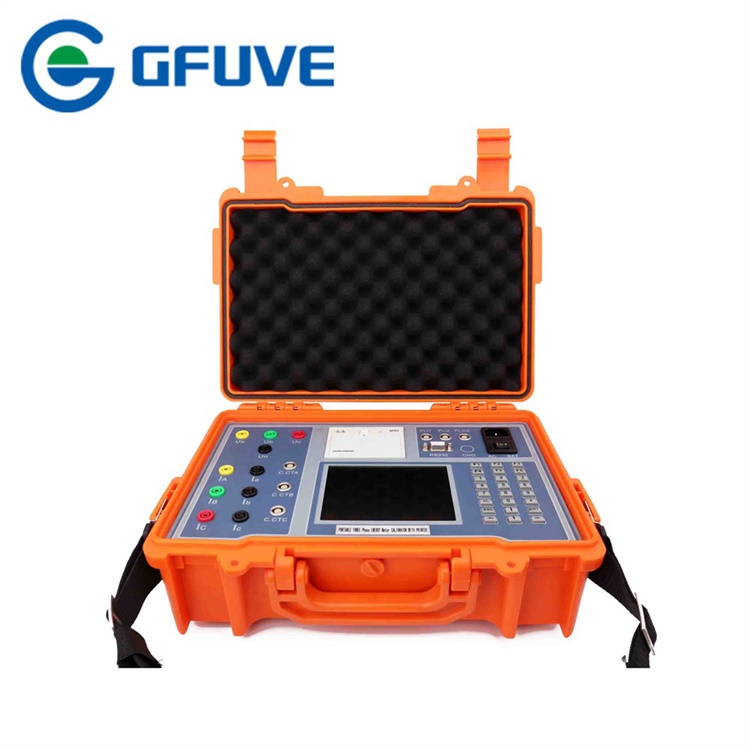

GF312B 120a clamp on ct Three Phase Portable Electric Energy Meter
Calibration Device With Printer
GF312B Portable Electric Energy Meter Calibration Device is used to
calibrate three phase, single phase, active and reactive watt
meters. And it also can be used as voltage, current and power meter
to measure AC parameters of three phase power line.It can measure
wave distortion factor and 2nd to 63th harmonic wave. it is high
precision 0.05%, measurement current 0-24A directly, 0-120A or
0-3000A with clamp on ct. 100A clamp on ct has software
compensation, the precision can reach 0.05%.
GFUVE Electronics is a recognized world leader of Energy Reference
Standards, Meter Test Boards, CT / PT Meter Field Testers, DC / AC
Transfer Standards, Energy Meter Testing and our Automated
Laboratory Energy Reference Systems. GFUVE Electronics is 100%
committed to exceeding the requirements of its Customers through
continual improvement of all our products and services.
Application
The devices used to calibrate electricity meters must be routinely
verified themselves. That’s the only way to protect consumers.
Laborelec’s working standards are well suited to the task. We can
carry out calibration on your site, minimising disruption to your
calibration routine.
Laborary has a fully equipped calibration equipment with the most
accurate energy standard. It can furnish an extensive accreditation
portfolio that is recognised internationally.
Power plant
Power company
Electric power measurement department
Electric Energy Laboratory
Metrological verification department
Petroleum and petrochemical enterprises
Steel and cement plant
Power commissioning company
FEATURES
- Three phase active or reactive electricity energy meter
- Calibrate three phase, single phase, active or reactive meter error
- Measure U(voltage) of three phase or single phase
- 4Measure I(current) of three phase or single phase
- Measure active power of three phase or single phase
- Measure reactive power of three phase or single phase
- Measure apparent power of three phase or single phase
- Measure power factor of three phase or single phase
- Measure phase angle between voltage and current
- Measure frequency of power line
- Display vector diagram
- Display waveform of U and I
- Analyze and display content of harmonic of U and I
- Store and check measured data
- Optional 5A, 20A, 100A, 500A, 1000A, 2000A, 3000A current clamp
- Measure CT variable ratio
- Print the data of measurement on site
PARAMETERS
| Electrical parameters |
|---|
| Accuracy class | 0.05, 0.1%, 0.2% |
| Power supply | 220V ± 10% or 110V ± 10%, 50/60Hz ± 2Hz |
| Test Voltage |
|---|
| Range | 0V-600V |
| Error | ±0.05% (30V-600V)
±0.1% (5V-30V) |
| Harmonic | 2nd-63st |
| Test Current |
|---|
| Range (direct connection) | 20mA-20A |
| Error (direct connection) | ±0.05% (100mA-20A)
±0.1% (20mA-100mA) |
| Range (Clamp CT) | 10mA-3000A |
| Error (Clamp CT) | ±0.2% (100mA-3000A)
±0.5% (10mA-100mA) |
| Harmonic | 2nd-63st |
| Power measure error |
|---|
| Active power (direct connection) | ±0.05% (0.1A-20A)
±0.1% (0.02A-0.1A) |
| Reactive power (direct connection) | ±0.1% (0.1A-20A) |
| Energy measure error |
|---|
| Active energy (direct connection) | ±0.05% (0.1A-20A)
±0.1% (0.02A-0.1A) |
| Reactive energy (direct connection) | ±0.1% (0.1A-20A) |
| Phase angle |
|---|
| Range | 0° ~ 360° |
| Resolution | 0.01° |
| Error | ±0.05° |
| Frequency |
|---|
| Range | 45Hz-65Hz |
| Resolution | 0.001Hz |
| Accuracy | 0.005Hz |
| Power factor |
|---|
| Range | -1 ~ 0 ~ 1 |
| Resolution | 0.0001 |
| Error | 0. 0005 |
| Pulse output | |
| Energy constant | 180000imp/kWh, 1800imp/kWh, 18imp/kWh |
| Pulse ratio | 1:1 |
| Output level | 5V |
| Pulse input |
|---|
| Input channel | 1 |
| Input level | 5-24V |
| Input frequency | Max. 2MHz |
| Display |
|---|
| Resolution | 6”TFT (640×480) |
| Function |
|---|
| Vector diagram | Yes |
| Waveform | Yes |
| Energy accumulation | Yes |
| Communication port | RS232 |
| Communication with PC | Yes |
| Mechanical parameters |
|---|
| Dimensions (W×H×D) (mm) | 390×200×160 |
| Host Weight (mm) | 3 |
| Weight (including Accessories 3pcs 100A clamp CT) (kg) | 12 |
| Environmental conditions |
|---|
| Ambient temperature | -10°C to 40°C |
| Relative humidity | 30%-85% |
