Epoxy Resin Silicon Rubber Outdoor Voltage Transformer 10kv For Power Supply

Ask Lasest Price
Brand Name :	GFUVE
Model Number :	JDZW-10RG
Certification :	CNAS, ICE61869-1,3
Price :	1000USD/PC
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	2000PCS/MONTH
Delivery Time :	7DAYS

Add to Cart

Product Details
Company Profile

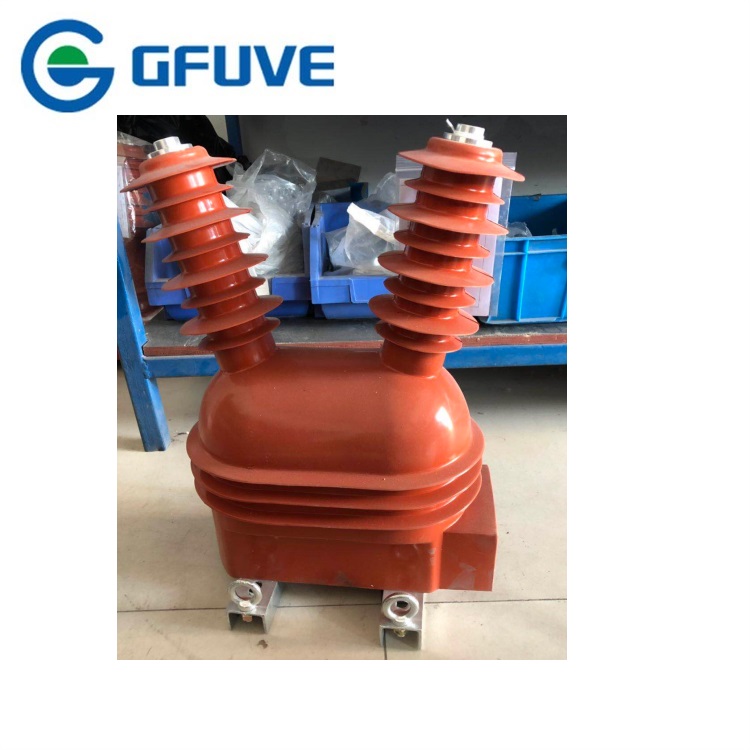

Epoxy Resin Silicon Rubber Outdoor Voltage Transformer 10kv For Power Supply

JDZW-10RG EPOXY RESIN SILICON RUBBER OUTDOOR VOLTAGE TRANSFORMER FOR POWER SUPPLY

Outdoor voltage transformer of the type JDZW-10 is single phase and epoxy resin silicon rubber insulated product, it's used for metering electric energy, voltage control and relay protection in 50/60HZ rated voltage less than 12kV electric system. It can be used for medial voltage AIS, or can be used for medial voltage switchgears. They can operate in all kinds of environments (such as wide range temperature (-50~70℃), high altitude, high humidity, high pollution or salt). This model JDZW-10 outdoor voltage transformer is also as voltage source to supply 220V voltage.

10kv Voltage Transformer , Find Complete Details about 10kv Voltage Transformer,Voltage Transformer,Outdoor Type Voltage Transformer,Three Phase Voltage Transformer from Transformers Supplier or Manufacturer-Beijing GFUVE Instrument Transformer Manufacturer Co., Ltd.

PARAMETERS

Technical parameters
Standards	IEC60044-2; IEC 61869-1,3; ANSI/IEEE C57.13
Rated Voltage	10KV, 6KV, 3KV
Rated load	≤1000VA
Rated frequency	50Hz or 60Hz
Cosø	0.8 (lag)
Phase number	Single phase
Rated insulation level	12/42/75KV, 7.2/32/60KV
With fuse	Yes,0.5A
Using type	Outdoor
Class of pollution	IV
Mechanical parameters
Material	Epoxy resin
Weight (kg)	38
Operating conditions
Operating temperature	-40°C to +60°C
Daily average temp	<+40°C
Storage temperature	-50°C to +70°C
Altitude	<1000 meters
Condition	No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

TECHNICAL PARAMETERS

Model	Rated voltage radio(V)	Accuracy class and Accuracy class combination rated secondary output(VA)	Limited output (VA)	Rated insulation level(KV)	Surface creepage distance (mm)	Once fuse (A)	Wt (KG)
Model	Rated voltage radio(V)		Limited output (VA)	Rated insulation level(KV)	Surface creepage distance (mm)	Once fuse (A)	Wt (KG)
JDZW-3	3000/100	0.2---40 0.5---80 1---200 3---300	1000	3.6/23/40	740	0.5	38
JDZW-6	6000/100			7.2/32/60		0.5
JDZW-10	10000/100			12/42/75		0.2
	10000/220	0.2---40 0.5---80 1---200 3---600



	10000/100/100	0.2/0.2---2S/2S 0.2/0.5---2S/2S 0.5/0.5---40/40	500/500


	10000/100/200	0.2/3---40/300 0.2/3---80/300	500/800
	10000/100/200	0.2/3---40/300 0.2/3---80/300	500/800
JDZXW-3G	3000/√3 100/√3 100/√3	0.2/6P(3P)---20/100 0.5/6P(3P)---50/100 1/6P(3P)---150/100 3/6P(3P)---250/100	600	3.6/23/40		0.5
JDZXW-6G	6000/√3 100/√3 100/√3			7.2/32/60		0.5
JDZXW-10G	10000/√3 100/√3 100/√3			12/42/75		0.2
JDZXW-10G	10000/√3 100/√3 100/√3 100/√3	0.2/0.2/6P(3P)---15/15/100 0.2/0.5/6P(3P)---15/15/100 0.5/0.5/6P(3P)---40/40/100	300/300	12/42/75		0.2
JDZW2-3	3000/100	0.2---20 0.5---50 1---80 3---150	400	3.6/23/40	820	0.5	33
						0.5
JDZW2-6	6000/100			7.2/32/60
JDZW2-10	10000/100			12/42/75		0.2
	10000/220
	10000/220
	10000/100/100	0.2/0.2---10/10 0.2/0.5---10/15 0.5/0.5---25/25	200/200
	10000/100/100	0.2/0.2---10/10 0.2/0.5---10/15 0.5/0.5---25/25	200/200
	10000/100/220	0.2/3---20/150 0.5/3---50/150 1/3---80/150	200/350
	10000/100/220	0.2/3---20/150 0.5/3---50/150 1/3---80/150	200/350
