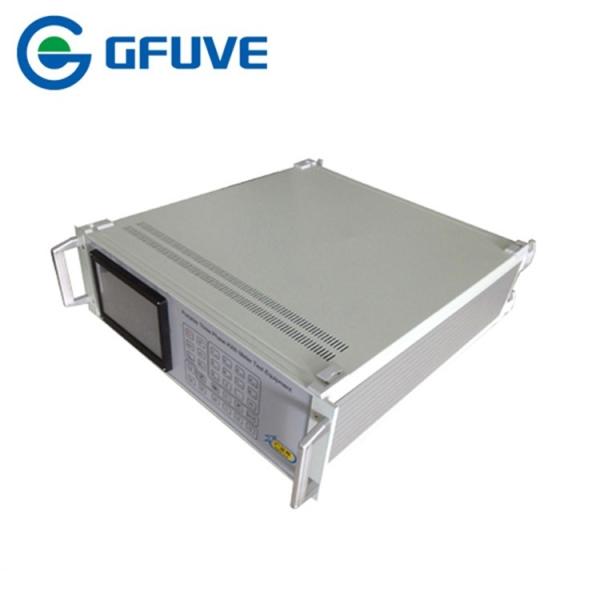

65Hz RS485 Port Electric Meter Calibration 45VA One Phase

Ask Lasest Price
Brand Name :	GFUVE
Model Number :	GF302D
Price :
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1500SETS/MONTH
Delivery Time :	1-2WEEKS

Add to Cart

Product Details
Company Profile

65Hz RS485 Port Electric Meter Calibration 45VA One Phase

Electrical parameters
Accuracy	0.05%, 0.1%
Power Supply	One Phase AC 180-265V, frequency 50/60Hz.
AC Voltage Output
Range(U1,U2,U3)	57.7V, 100V, 220V, 380V or 69.3V, 120V, 240V, 480V( optional)
Adjustment range	(0-120)%RG⁽¹⁾
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	0.01%/120s
Distortion	0.3% (Non-capacitive load)
Output load	each phase 25VA
Measuring accuracy	0.05%RG
AC Current Output
Range(I1,I2,I3)	200mA, 1A, 5A, 20A, 100A
Adjustment range	(0-120)%RG
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	<0.01%/120s
Distortion	≤0.3% (Non-capacitive load)
Output load	45VA
Accuracy	0.05%RG
Power Output
Active power output stability	<0.01%RG/120s
Reactive power output stability	<0.02%RG/120s
Active power measuring accuracy	0.05%RG
Reactive power measuring accuracy	0.1%RG
Phase Output
Output adjustment range	0°-359.999°
Output adjustment fineness	10, 1, 0.1, 0.01 as optional.
Resolution	0.01°
Accuracy	0.05°
Power Factor
Adjustment range	-1 ~ 0 ~ 1
Resolution	0.0001
Measurement accuracy	0. 0005
Frequency Output
Adjustment range	45Hz-65Hz
Output adjustment fineness	5Hz, 1Hz, 0.1Hz, 0.01Hz as optional.
Resolution	0.001Hz
Accuracy	0.005Hz
Voltage /Current/Harmonic Setting
Harmonic number	2-51times
Harmonic content	0-40%
Harmonic phase	0-359.99
Harmonic setting accuracy	(10%±0.1%)RD⁽²⁾
Power Energy Measurement Error
Active power energy	0.05%RG
Reactive power energy	0.1%RG
Power Pulse Output
Power pulse type	active pulse, reactive pulse
Active power pulse output	5V, 10mA
Power Pulse Input
Energy pulse type	support active and reactive pulse, the highest frequency power pulse input is 180K.
Mechanical parameters
Dimensions (W×D×H) (mm)	500x600x175
Weight (kg)	About 27
