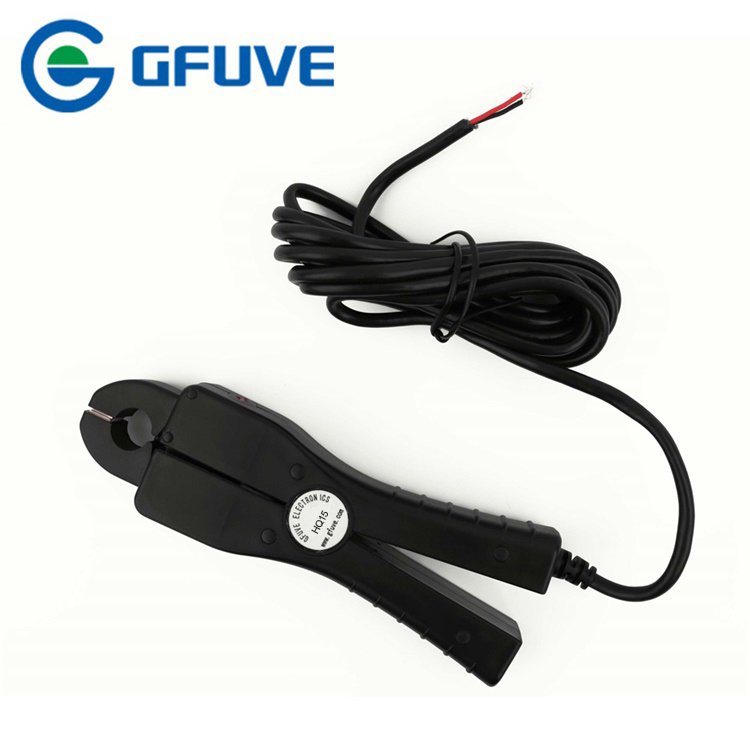

    GFUVE HQ15 5A 100A AC Light Weight Current Probe CT Detection Monitoring Low Current Amp Seneor

    Ask Lasest Price
    Brand Name : GFUVE
    Model Number : HQ15
    Certification : CE UL
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 5000 pieces per month
    Delivery Time : Within 7 Days
    • Product Details
    • Company Profile

    GFUVE HQ15 5A 100A AC Light Weight Current Probe CT Detection Monitoring Low Current Amp Seneor

    HQ15 HIGH-VALUE VOLTAGE OUTPUT AC CURRENT CLAMP SENSOR


    Description


    The HQ15 AC Current Probe is designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables. The sensing head uses sliding push-fifit clamp structure, safety isolation to avoid the user to contact with charged objects directly. It complies with CE standards and meets 300V CAT III safety class.

    features


    1. Flexible and light weights, exquisite appearance
    2. Easy &quick installation in tight spaces
    3. Excellent linearity
    4. Maximum measuring current up to 130A
    applications
    1. Power quality monitoring
    2. CT secondary current detection
    3. Smart logger
    4. Distributed measurement systems

    Electrical parameters
    Model
    HQ15-A5
    HQ15-A100
    Rated primary current
    5A AC
    100A AC
    Output Voltage
    10 mV AC/A
    1mV AC/A
    Maximum input current
    50A AC (Continuous)
    130A AC (Continuous)
    (45-66Hz,Ambient temp.50°C)
    Amplitude accuracy
    ±0.3%RD±0.02%FS (10%-100%I1n), 45Hz- 66Hz)
    Phase accuracy
    ±2° (10%-100%I1n)(45Hz-5kHZ)
    The amplitude frequency characteristic
    ±0.1% (45Hz-5kHZ)(Deviation accuracy)
    Conductor impact
    ±0.5 (Offff-center)
    The inflfluence of external lectromagnetic fifields
    ≤0.1A (In AC 400A / m electromagnetic fifields)
    Temperature Coeffiffifficient
    ±0.02%/°C ofthe reading data
    Dielectric strength
    3000 V AC rms/Continue 15 seconds(Circuits-iron core, iron core-shell)
    The maximum rated voltage
    300V AC rms
    Applicable Standards
    Safety: EN61010-2-032:2002,300V CAT III, Contamination II
    EMC: EN61326:1997+A1:1998+A2:2001+A3:2003(Class A)
    Mechanical parameters
    Measurable conductor diameter
    Max.15mm
    Cable length
    About 3 m
    Dimension (W x H x D)
    About 46×135×21 (Excluding protruding parts)
    Weight
    About 230g
    Environmental conditions
    Operating temperature
    0 to 50°C (32-122°F)
    Operating humidity
    ≤80%RH(No condensate)
    Storage temperature
    -10 to 60°C (14-140°F)
    Storage humidity
    ≤80%RH(No condensate)
    Operating environment
    Indoor, altitude up to 2000 meters
