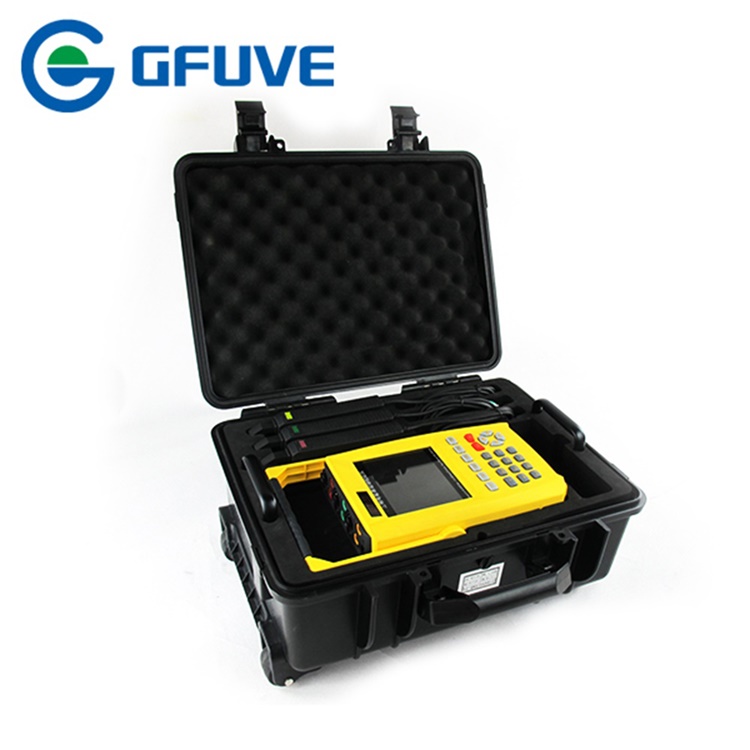

Name: Harmonic 480V Electric Meter Calibration 640480 Resolution
Brand: GFUVE
Price: 8000 USD

Add to Cart

TECHNICAL PARAMETERS

Electrical parameters
Accuracy class	0.05%, 0.1%
Resolution	6” TFT (640×480)
Power supply	220V±10%, 50/60Hz Li-polymer battery (size (mm): 110x51x16, nominal output voltage: 7.2V, capacity: 5000mAh) Power line supply (U1, UN), 85V-265V 50/60Hz
Communication port	RS232
Test voltage
Range	5-480V
Error	±0.05% (30V-480V) ±0.1% (5V-30V)
Harmonic	2^nd-63^st
Test current
Range (direct connection)	5mA-20A
Error (direct connection)	±0.05% (100mA-20A) ±0.1% (10mA-100mA)
Range (clamp CT)	10mA-3000A
Error (camp CT)	±0.2% (100mA-100A) ±0.5% (100A-3000A)
Harmonic	2^nd-63^st
Power measure error
Active power (direct connection)	±0.05% (0.1A-20A) ±0.1% (0.01A-0.1A)
Reactive power (direct connection)	±0.1% (0.1A-20A)
Energy measure error
Active energy (direct connection)	±0.05% (0.1A-20A) ±0.1% (0.01A-0.1A)
Reactive energy (direct connection)	±0.1% (0.1A-20A)
Phase angle
Range	0°-360°
Resolution	0.01°
Error	±0.05°
Frequency
Range	45-65Hz
Resolution	0.001Hz
Error	0.002Hz
Pulse input
Input channel	2
Input level	5-24V
Input frequency	Max. 2MHz
Pulse output
Energy constant	180000imp/kWh, 1800imp/kWh, 180imp/kWh
Pulse ratio	1:1
Output level	5V
Function
Vector diagram	Yes
Waveform	Yes
Energy accumulation	Yes
Communication with PC	Yes
Mechanical parameters
Instrument dimensions (W×H×D) (mm)	220×138×61
Instrument Weight (kg)	1.7
Carry case dimensions (W×H×D) (mm)	450×320×185
Carry case (kg)	8.5
Environmental conditions
Ambient temperature	-10°C to 55°C
Relative humidity	15%-85%
