Creep Testing 265V Verification Equipment With Self Checking

Ask Lasest Price
Brand Name :	GFUVE
Model Number :	GF102
Price :
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	1500SETS/MONTH
Delivery Time :	1-2WEEKS

Add to Cart

Product Details
Company Profile

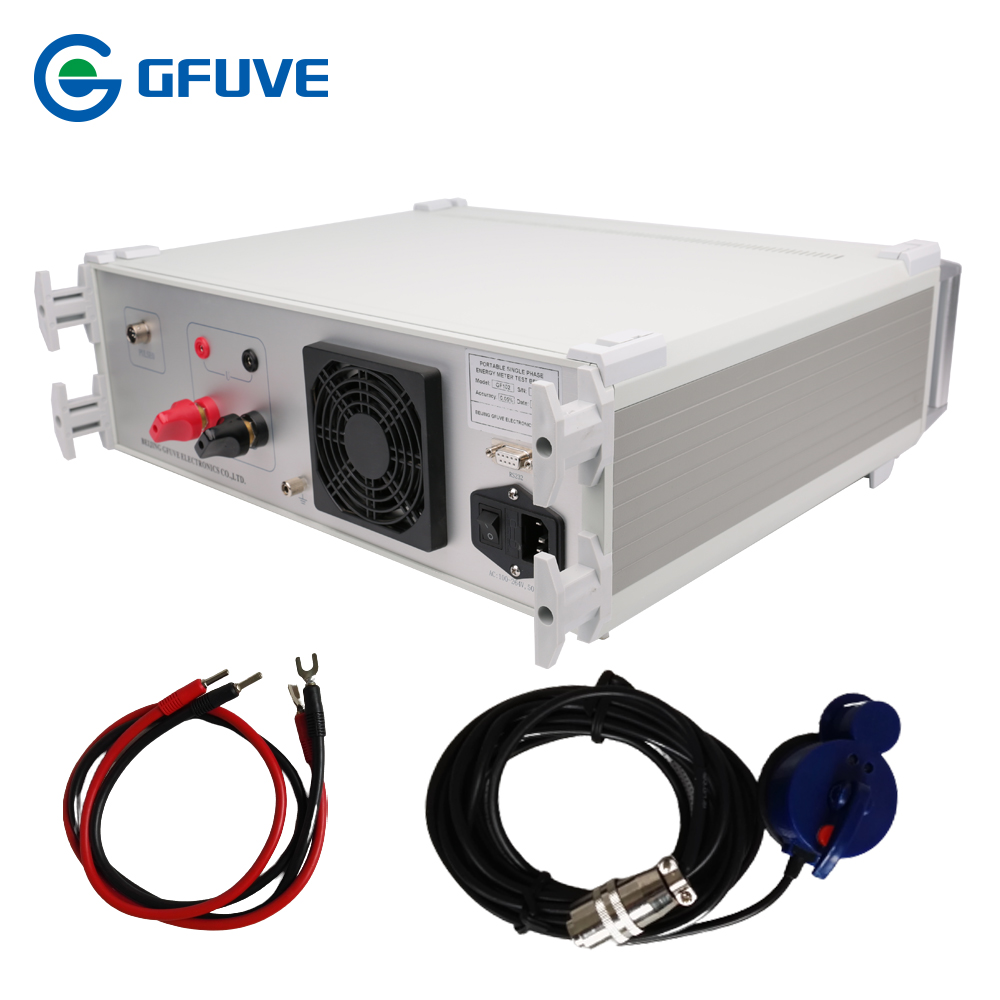

Creep Testing 265V Verification Equipment With Self Checking

Single Phase Verification Equipment,High Cost Effective,2 Testing Mode,High Accuracy,Wide Measurement Range

FEATURES

Meter under testing: 1P2W
2Testing mode: active power, reactive power
Test 3pcs or 2pcs meter synchronously
Start testing and creep testing
Reference standard and power source integrated, easy to carry
Measuring mechanical meter and electric meter
Operating by manual keyboard or PC software
With keyboard shortcuts
Internal large capacity storage device for mass memory
Local checking the testing result
Overload, short circuit, open circuit protection
With self-checking function

TECHNICAL PARAMETERS

AC Voltage Output
Accuracy class	0.05%, 0.1%
Power supply	One Phase AC 100-265V, frequency 50/60Hz.
Range	57.7V, 100V, 220V, 380V; max 500V
Adjustment range	(0-120)%RG(1)
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	0.01%/120s
Distortion	0.1% (Non-capacitive load)
Output load	max 25VA
Measuring accuracy	0.05%RG
AC Current Output
Range	200mA, 1A, 5A, 20A, 100A; max 120A
Adjustment range	(0-120)%RG
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	<0.01%/120s
Distortion	≤0.1% (Non-capacitive load)
Output load	max 50VA
Accuracy	0.05%RG
Power Output
Active power output stability	<0.01%RG/120s
Reactive power output stability	<0.02%RG/120s
Active power measuring accuracy	0.05%RG
Reactive power measuring accuracy	0.1%RG
Phase Output
Output adjustment range	0°-359.999°
Output adjustment fineness	10, 1, 0.1, 0.01 as optional.
Resolution	0.01°
Accuracy	0.05°
Power Factor
Adjustment range	-1 ~ 0 ~ 1
Resolution	0.0001
Measurement accuracy	0. 0005
Frequency Output
Adjustment range	40Hz-70Hz
Output adjustment fineness	5Hz, 1Hz, 0.1Hz, 0.01Hz as optional.
Resolution	0.001Hz
Accuracy	0.005Hz
Voltage /Current/Harmonic Setting
Harmonic number	2-51times
Harmonic content	0-40%
Harmonic phase	0-359.99
Harmonic setting accuracy	(10%±0.1%)RD(2)
Power Energy Measurement Error
Active power energy	0.05%RG
Reactive power energy	0.1%RG
Power Pulse Output
Power pulse type	active pulse, reactive pulse
Active power pulse output	5V,10mA
Power Pulse Input
Energy pulse type	support active and reactive pulse, the highest frequency power pulse input is 180K.
Mechanical parameters
Dimensions (W×D×H) (mm)	455x440x150
Weight (kg)	12
Environmental conditions
Ambient temperature	-10°C to +40°C
Relative humidity	35%-85%
