    120A 300V 0.2% color touch LCD Single Phase Electric meter Test Equipment Calibration of energy meter

    Ask Lasest Price
    Brand Name : GFUVE
    Model Number : GF112B - 3
    Certification : IEC,ISO
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 500 Pieces Per Month
    Delivery Time : 3 - 7 Days
    • Product Details
    • Company Profile

    120A 300V 0.2% color touch LCD Single Phase Electric meter Test Equipment Calibration of energy meter


    GF112B 300V/120A Single-phase Energy Meter Calibrator


    GF112B Single-Phase kWh Meter Calibrator is suitable to test various types single phase meters on site and also can be used to test alternating current parameters.


    Calibration Of Three Phase Energy Meter. Programmable Calibration Of Three Phase Energy Meter Standard Power Source. 3 Phase AC Current Calibrator / Kwh Meter Multi Tester Calibration Device. High Precision Calibration Of Three Phase Energy Meter With LED Display.


    Single Phase Power Energy Meter Calibrator is used for calibration of Energy Meters, Wattmeters, VA Meters, VAr Meters, PF meters. The user can set Voltage, Current, Frequency, Power Factor etc. It is reliable and accurate hence it has demand in Calibration Testing Laboratories, Power Energy meter .

    This product also known as Watt Meter Calibrator, Energy Meter Calibrator. We are also specialized in Calibration Services (Calibrator) & our setup is situated in Beijing, China.


    Parameters


    Electrical parameters
    Accuracy class0.2%
    Active power measurement accuracy0.2%, 0.5%
    Energy measurement accuracy0.2%, 0.5%
    Power supplyAAA type, Li rechargeable battery, 750mAh, 3.6V
    it can work 8 hours continuously
    Warming-up time<5 min
    Voltage measurement
    U Range15-300V
    Accuracy0.2%
    Current measurement
    I Range5mA-120A
    Accuracy0.2%
    Phase measurement
    Range0.00°-359.99°
    Resolution0.01°
    Accuracy0.05°
    Frequency measurement
    Range45-65Hz
    Resolution0. 001Hz
    Accuracy0.005Hz
    Power Factor Measurement
    Range-1 ~ 0 ~ 1
    Resolution0.001
    Accuracy0.005
    Energy pulse output
    Pulse constant25000
    Energy Pulse Input
    Input range of pulse constant1-25000
    Pulse input level5V
    Mechanical parameters
    Dimensions (W×D×H) (mm)215×60×30
    Aperture of current clamp: 20mm
    Weight (kg)0.25 (mains)
    0.8 (accessory and box)
    Environmental conditions
    Working temperature-10°C to 55°C
    Working humidity5%-85%RHD
    Storage temperature-25°C to 70°C
    Storage humidity5%-95%RHD

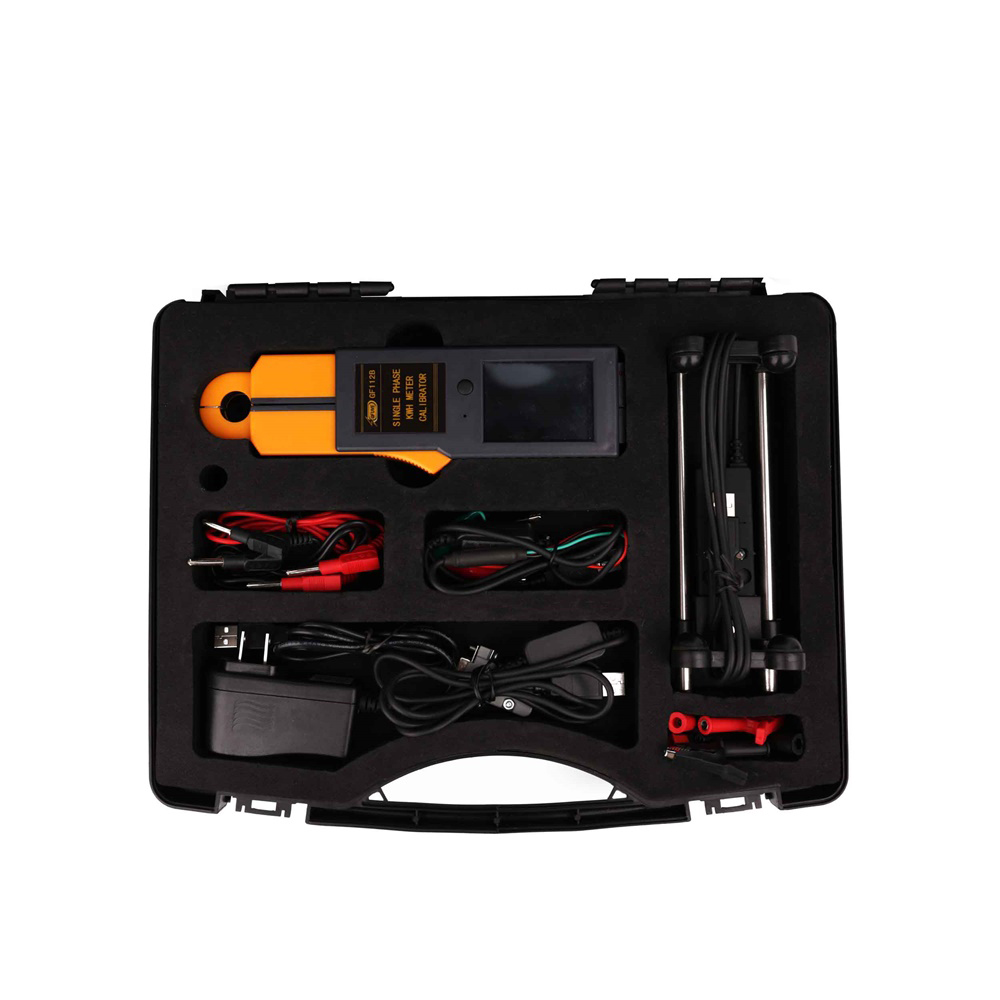

    The Product Picture:


    Quality 120A 300V 0.2% color touch LCD Single Phase Electric meter Test Equipment Calibration of energy meter for sale
