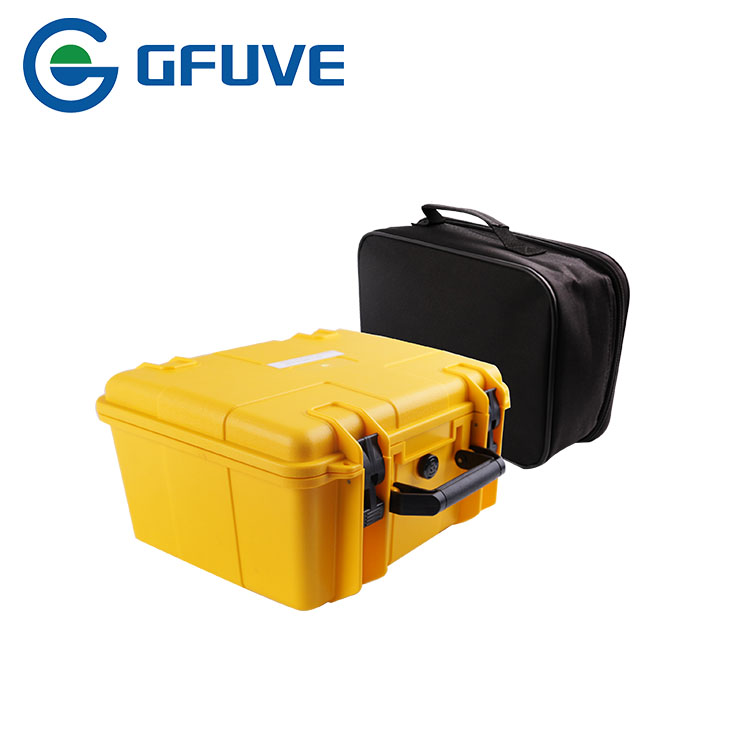

Smart high accuracy portable CT PT Analyzer
with Printer and Large
LCD
GF1061 portable CT PT analyzer is mainly used for field or lab
testing, it can finish the measurements (M) and protection (P)
class CT, PT and TYP class CT. Adopt 7 inch touch TFT LCD,
self-equipped mini type printer supporting field printing;
supporting to use USB flash disk to dump data. The CT PT Analyzer
is the most complete and easy-to-use testing system for protection
and metering CTs according to IEEE and IEC standards.
Features
1. Steady and transient state characteristic tests of various types
of CT/PT
2. The use of advanced power technology, the test knee point
reaches up to 30kV
3. No external other auxiliary equipment, stand-alone to complete
all test items
4. CT test, easy to test, all the tests are using the same wire
connection except the load test
5. It carries with thermal printer, so it can print test results on
site Reference Standard IEC 60044, ANSI/ IEEE C57.13, IEC61869, GB
1207-2006, GB 1208-2006
6. Parameters such as knee point current and voltage
7. Parameters such as 10% error curve, 5% error curve
8. With battery, working 48hours.
9. The device can store 10000 groups of test data which would not
be lost if the device is power off.
10. The data can be displayed and analyzed after the test, or
transferred to PC through USB disk and produce a Word file report
11. Portability: weight <4kg, the best light ct analyzer
MAIN FUNCTIONS
| I. Current Transformer (CT) | II. Voltage Transformer (PT) |
|---|
| 1. Magnetization curve | 1. Excitation characteristic test |
| 2. Transformation ratio test | 2. Transformation ratio test |
| 3. Polarity | 3. Polarity |
| 4. 5% and 10% error curve | 4. Ratio error, phase error |
| 5. Accuracy limiting factor (ALF) | 5. Degauss |
| 6. Degauss | 6. Calculation of knee point value |
| 7. Ratio error, phase error | 7. Actual secondary load test (burden test) |
8. Automatic calculation of excitation knee
point value | 8. Resistance test |
| 9. Actual secondary load test (burden test) |
| 10. Resistance test |
| 11. Secondary time constant (Ts) |
| 12. Remanence coefficient (Kr) |
| 13. Transient dimensioning factor (Ktd) |
| 14. Peak instantaneous error (Er) |
| 15. Magnetizing inductance (LU) |
| 16. Instruments security factor(FS) |
| 17. Composite error |
PARAMETERS
| Electrical parameters |
|---|
| Accuracy | 0.05% |
| Power supply | AC 220V±10% or AC 120V±10%, 50/60Hz or Battery |
| Output voltage | 0-100Vrms |
| Output current | 0-5Arms (20A peak-value) |
| Output power | 0-400 VA (1500 VApeak) |
| Automatic frequency variation range | 0.1-60Hz |
| Equivalent excitation voltage | ≤5000V |
| Accuracy | ≤0.5% |
| Secondary winding DC resistance measurement | Range | 0.1-1000Ω |
| Accuracy | ≤0.05% |
| Secondary actual load measurement | Range | 5VA-1000VA |
| Accuracy | ≤0.5%±0.1VA |
| CT/PT phase error measurement | Accuracy | ±1min (typical) / 3 min (guaranteed) |
| Resolution | 0.1min |
| CT ratio error measurement | Range | 1-50000 |
| Accuracy | ≤0.05% |
| PT ratio error measurement | Range | 1-10000 |
| Accuracy | ≤0.05% |
| Standards |
|---|
| Reference standards | GB1207-2006, GB1208-2006, GB16847-1997
IEC60044-1, IEC60044-6, IEC61869-2, ANSI/IEEE C57.13 |
| Safety standards | GB 4793.1-2007 |
| EMC | EMC standard 89/336/EEC |
| FCC Subpart B of Part 15 Class A |
| IEC 1000-4-2 /3 /4 /6 |
| Mechanical parameters |
|---|
| Overall dimension (L x W x H) (mm) | 280 x 250 x 160 |
| Weight (kg) | ≤4 |
| Environmental conditions |
|---|
| Relative humidity | Relative humidity 5%-95% not condensing |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -20°C to +70°C |
| Altitude | ≤1000m |
