Name: Light Weight Amp Clamp Meter 100m Communication Distance Low Power Consumption
Brand: GFUVE
Price: 1 USD

Add to Cart

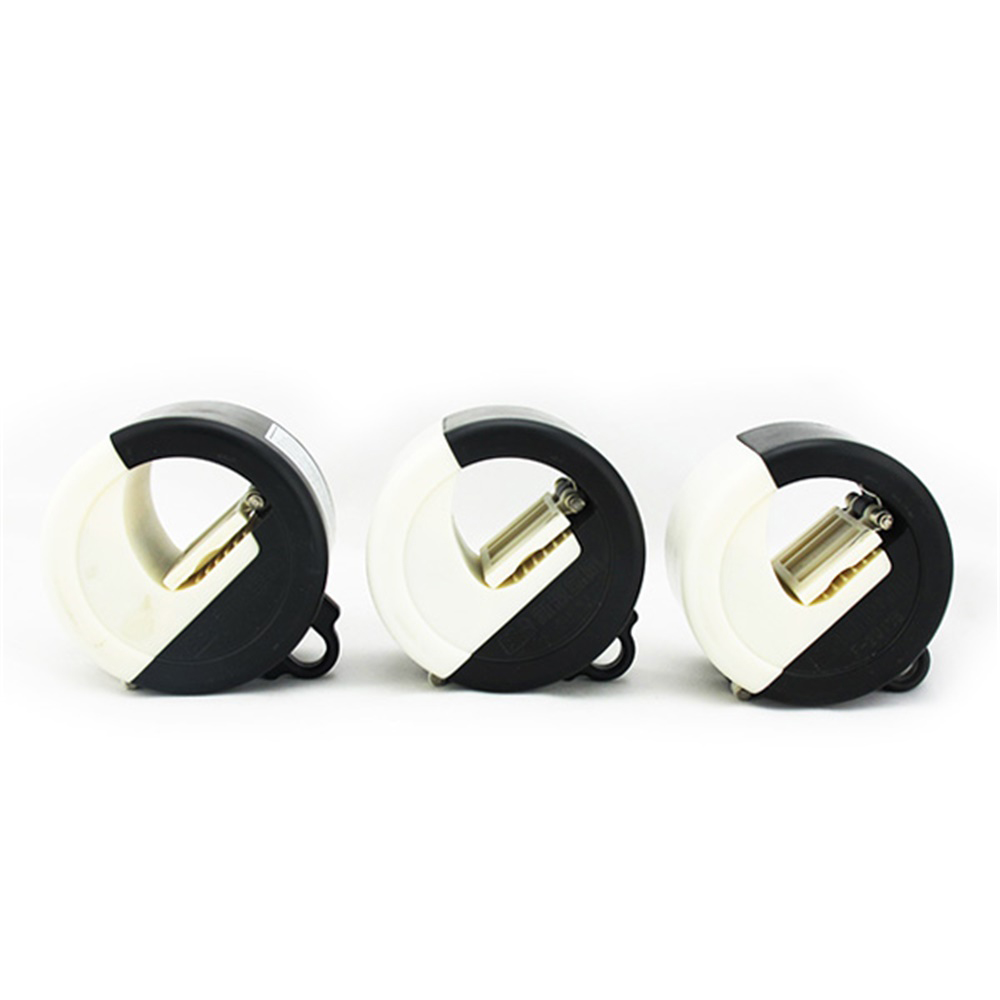

AMMETER RECORDER FOR MID VOLTAGE WIRELESS PRIMARY

Measurement Accuracy: class 1%
Small volume, light weight, easy to overhead installation, safe environmental protection
Battery power supply, low power consumption, long life
Transmission distance: 100 m
Simple structure, operation convenient
Install or remove with power on

Basic parameters
Type	Recording ammeter kit 3 wireless current sensors (GF2013A, GF2013B, GF2013C) 433M wireless data reader(GF2013R) PC-Linksoftware software(GF2013S) Carrying case
Data recording interval	5min, 10min,15min, 30min;
Communication distance(wireless)	100m
Communication	433M, 868M or 915M (option)
Installation	Installation with electricity; remove with electricity
Battery	3.6 volt lithium battery,9000mAh
Software requirements	PC-LinkSoftware & Microsoft Excel
Processor	100 MHz or Higher ( 200 MHz or higher recommended)
RAM	32 MB, 64M Recommended
Drive Space	15 MB to load software, 10 MB of operating space
Electrical parameters
Amps accuracy	±1% of reading plus 2 counts
Frequency	50/60 Hz
Range of operation
Voltage	69kV, 35kV, 20KV, 10kV, 6kV
Current	1-100A, 1-300A
Sensor opening	up to 3.3 cm
Resolution
1-99.9A	0.1A
100-300A	1A
Mechanical parameters
Dimensions (W×D×H) (mm)	500x600x175
Weight (kg)	0.42
Environmental conditions
Operating temp	-40°C to 60°C
Use of position	Outdoor or indoor
