Electrical Solar Digital Power Meter , Single Phase Power Meter Harmonics Analyzer

Ask Lasest Price
Brand Name :	GFUVE
Model Number :	FU2040
Certification :	CE
Price :	Negotiable
Payment Terms :	Western Union, T/T, L/C
Supply Ability :	2000 Pieces per Month

Add to Cart

Product Details
Company Profile

Electrical Solar Digital Power Meter , Single Phase Power Meter Harmonics Analyzer

High Quality Single Phase Stop electrical Digital Solar Power Meter / Power and Harmonics

Analyzer

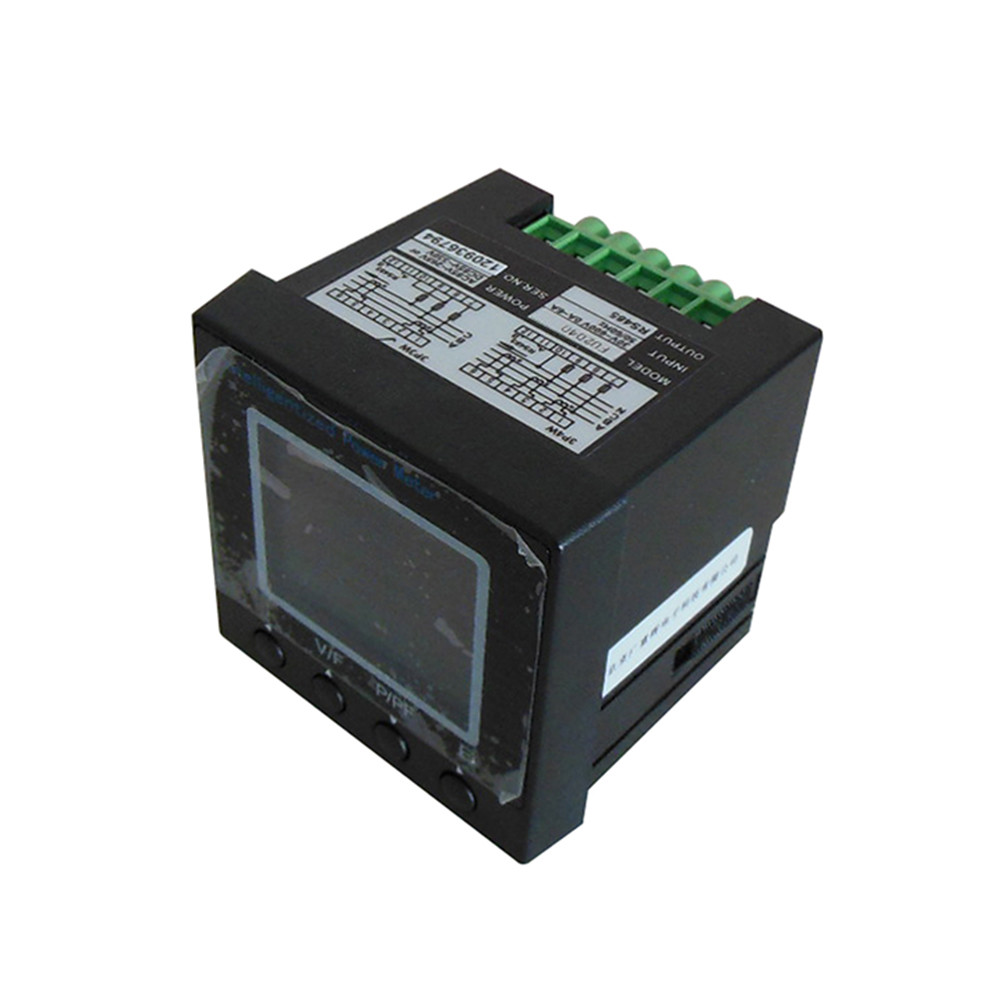

FU2040 is a LCD display single phase stop digital solar power meter, metering and displaying all the measured parameters in one circuit and computing four quadrants energy. This model can work in wide temperature range.

FEATURES

Can measure all the electrical parameters
Can compute four quadrants energy.
High accuracy 0.5s
PT, CT transformation ratio is settable
Can work in wide temperature range

PARAMETERS

Electrical parameters
Power supply (AC/DC)	AC 85-265V / DC 85-330V Power consumption: <4VA
Measurement parameters	Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power (W); Reactive Power (Q); Apparent Power (S)
Computation	Forward / Reverse active / reactive power energy
Measuring range	30-600V, 0-6A, 45-60Hz
Measuring accuracy	Frequency: 0.1% Electric energy: 0.5%, 1.0% Voltage : 0.2%±0.1V Current : 0.2%±0.001A Power : 0.5% ±0.4W Power Factor : 0.5% ±0.001
Display	LCD display; 3 display; 4 operation keys
Communication	Support RS485 interface port, 32(128) networking, Modbus-RTU communication protocol.
Programmable	Measuring system: 3P4W/3P3W etc Transformation ratio : PT, CT Communication: Address: 1-247; Baud: 1200-19200; Parity bit: N/E/O Energy: reset
Connection mode	3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W
Mechanical parameters
Dimensions (mm)	Mounting panel: 72x72 Thickness: 13 Depth: 60
Mounting	Panel mounting Trepanning: 68x68mm
Environmental conditions
Temperature	-25 to +50°C
Humidity	20%-95%RH, without condensation
