Microcomputor Single Phase Protective Relay Tester / Testing Equipment Robust Shape

Ask Lasest Price
Brand Name :	GFUVE
Model Number :	TEST-750
Certification :	ISO
Price :	Negotiable
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	200 Sets
Delivery Time :	3 - 7 Days

Add to Cart

Product Details
Company Profile

Microcomputor Single Phase Protective Relay Tester / Testing Equipment Robust Shape

Single Phase Microcomputor Protection Relay Test Set

TEST-750 single-phase relay test set high performance, portable to test in the field; it adopts aluminum alloy body with PC panel, robust shape; with the ARM chip control, LCD screen display single-phase protective relay test device of voltage and current output stopwatch;a full isolation, adjustable AC and DC voltage, AC direct current; an adjustable DC voltage and an adjustable AC voltage; output circuit with double overload protection, high output capacity, small size, light weight, high reliability. The equipment is suitable for a variety of relay field calibration and performance test.

Parameters

Electrical parameters
Rated input power
AC	220V±10% 1000VA·50/60Hz or 110V±10% 1000VA·50/60Hz
Turn on/turn off auxiliary contacts
Max current	1A
Max voltage	AC250V or DC120V
AC output
Range	0-10A	0-40A	0-100A	0-100A
No-load Voltage(Min)	90V	25V	10V	10V
Full-load Voltage (Min)	80V	22V	8V
Full-load Current (Max)	10A	40A	100A	150A
AC/DC voltage output
Range	0-250V(AC)	0-300V(DC)
No-load Voltage(Min)	250V	320V
Full-load Voltage (Min)	240V	250V
Full-load Current (Max)	3A	3A
Auxiliary DC voltage output
Range	5-120V	110-220V
Max Voltage	120V	220V
Max Current	0.5A	0.5A
Auxiliary AC voltage output
Range	0-120V
Max voltage	120V
Max current	0.5A
Stopwatch
Range	0.0000-999999S
Resolution	0.1mS
Accuracy	±5 words
Max input voltage (With contact and potential input)	DC 250V
Ammeter
Range	Inside 0.000-150.0A Outside 0.000-6.000A(AC or DC)
Accuracy	0.50%
Voltmeter
Range	0.0-600.0V(AC or DC)
Accuracy	0.50%
Measuring mode	AC True RMS DC Average value
Resistor
Resistance	0.5Ω-2.5kΩ
Mechanical characteristics
Dimensions (W×D×H) (mm)	340×270×260
Weight	18kg
Mechanical parameters
Temperature	-10°C to 40°C
Relative humidity	<80%

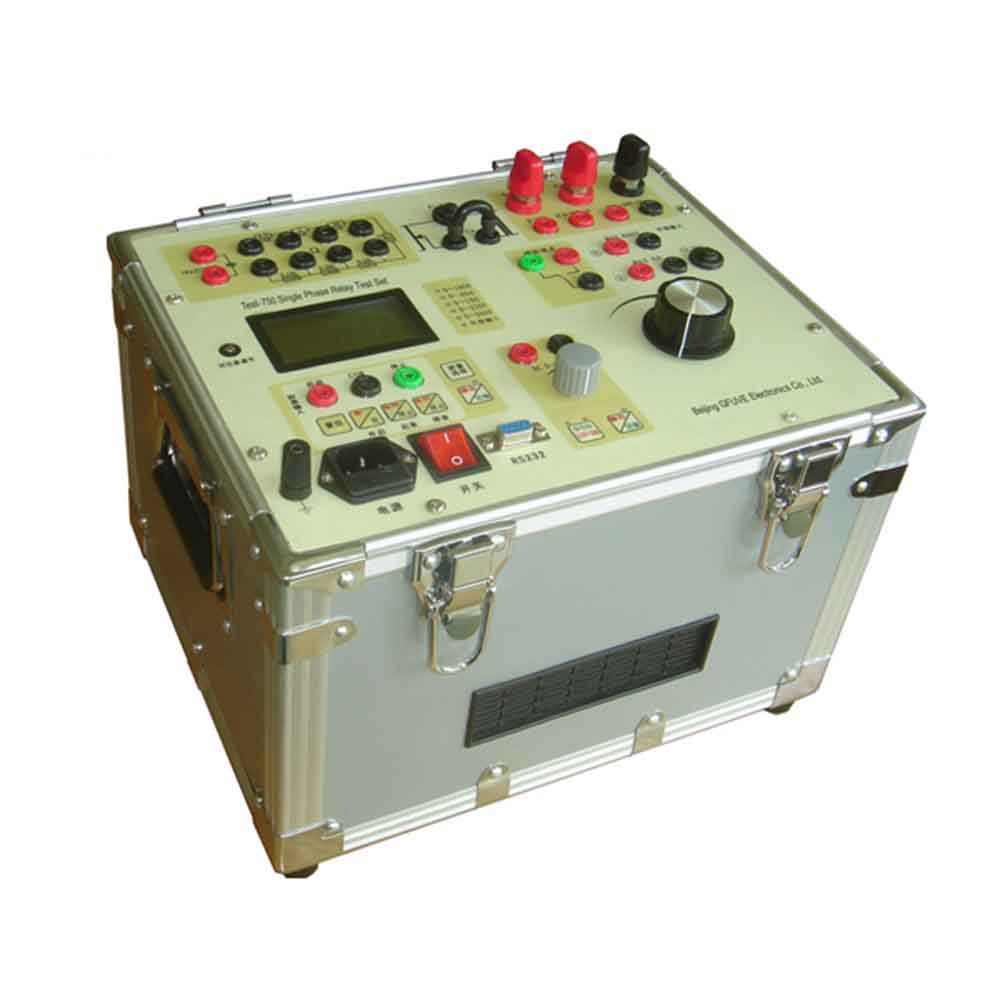

The Product Picture:
