GF112 Lightweight Electrical Test Equipment Calibration For Electric Power Departments

Ask Lasest Price
Brand Name :	GFUVE
Model Number :	GF112
Certification :	ISO
Price :	Negotiable
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	500 Pieces Per Month
Delivery Time :	3 - 7 Days

Add to Cart

Product Details
Company Profile

GF112 Lightweight Electrical Test Equipment Calibration For Electric Power Departments

GF112 Portable Single Phase Electric Meter Tester

GF112 portable single phase standard meter is with human oriented design, hand-held and lightweight portable. It is suitable for electric power departments, measuring and quality examining departments and electric lab to field use.

Parameters

Electrical parameters
Active power measurement accuracy	0.3%, 0.5%
Energy measurement accuracy	0.3%, 0.5%
Power supply	AC 110-264V 50/60Hz
Warming-up time	< 5 min
Power consumption	≤5VA
Voltage measurement
Range	0-264V
Accuracy	0.3%
Current measurement
Range	10mA-40A or 10mA-120A
Accuracy	0.3%
Phase measurement
Range	0°-359.9°
Resolution	0.1°
Accuracy	0.5°
Frequency measurement
Range	45-65 Hz
Resolution	0.01Hz
Accuracy	0.05Hz
Power factor measurement
Range	0.4000 ~ +1.0000
Resolution	0.001
Accuracy	0.01
Electric energy pulse output
Pulse constant	900
Energy pulse input
Input range of pulse constant	1-25000
Pulse input level	5V
Mechanical parameters
Dimensions (W×D×H) (mm)	185×67×30
Weight (kg)	1 (mains) 2 (appendix and bag)
Environmental conditions
Working temperature	-10°C to 50°C
Working humidity	5%- 85%RHD
Storage temperature	-25°C to 70°C
Storage humidity	5% -95%RHD

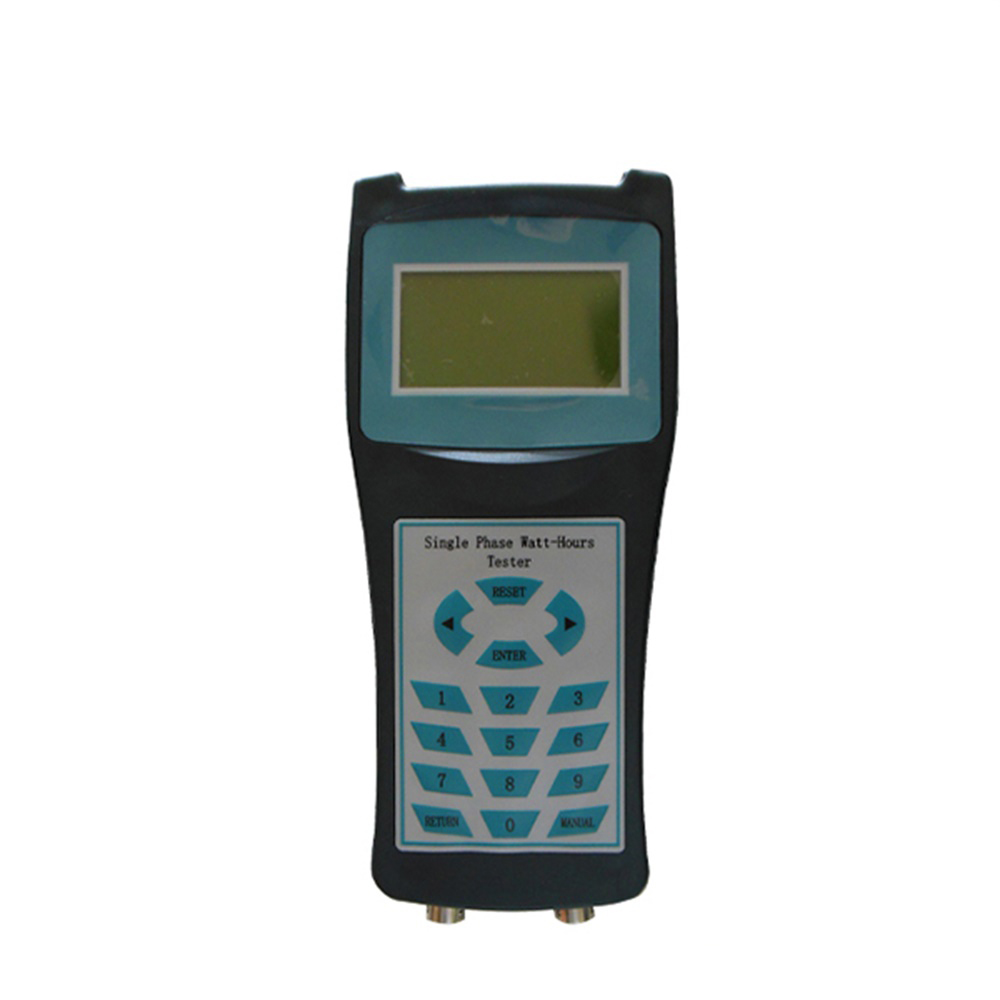

The Product Picture
