1 - Phase Electric Meter Calibration Built - In 5A Load LCD Color Display Screen

Ask Lasest Price
Brand Name :	GFUVE
Model Number :	GF112
Certification :	ISO
Price :	Negotiable
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	500 Pieces Per Month
Delivery Time :	3 - 7 Days

Add to Cart

Product Details
Company Profile

1 - Phase Electric Meter Calibration Built - In 5A Load LCD Color Display Screen

Portable 1 - Phase Energy Meter Calibrator

1 . Field test kinds of inductive, electronic single phase meter
2 . Measurement error, voltage, current, power, power factor and frequency at site
3 . LCD color display, English menu, direct viewing and convenient
4 . Equip with RS232 to connect with PC
5 . With built-in 5A load
6 . Energy accumulation function
7 . Large capacity storage device for mass memory
8 . With 2pcs clamp CT to test ratio of current transformer. (Optional)

Parameters

Electrical parameters
Active power measurement accuracy	0.3%, 0.5%
Energy measurement accuracy	0.3%, 0.5%
Power supply	AC 110-264V 50/60Hz
Warming-up time	< 5 min
Power consumption	≤5VA
Voltage measurement
Range	0-264V
Accuracy	0.3%
Current measurement
Range	10mA-40A or 10mA-120A
Accuracy	0.3%
Phase measurement
Range	0°-359.9°
Resolution	0.1°
Accuracy	0.5°
Frequency measurement
Range	45-65 Hz
Resolution	0.01Hz
Accuracy	0.05Hz
Power factor measurement
Range	0.4000 ~ +1.0000
Resolution	0.001
Accuracy	0.01
Electric energy pulse output
Pulse constant	900
Energy pulse input
Input range of pulse constant	1-25000
Pulse input level	5V
Mechanical parameters
Dimensions (W×D×H) (mm)	185×67×30
Weight (kg)	1 (mains) 2 (appendix and bag)
Environmental conditions
Working temperature	-10°C to 50°C
Working humidity	5%- 85%RHD
Storage temperature	-25°C to 70°C
Storage humidity	5% -95%RHD

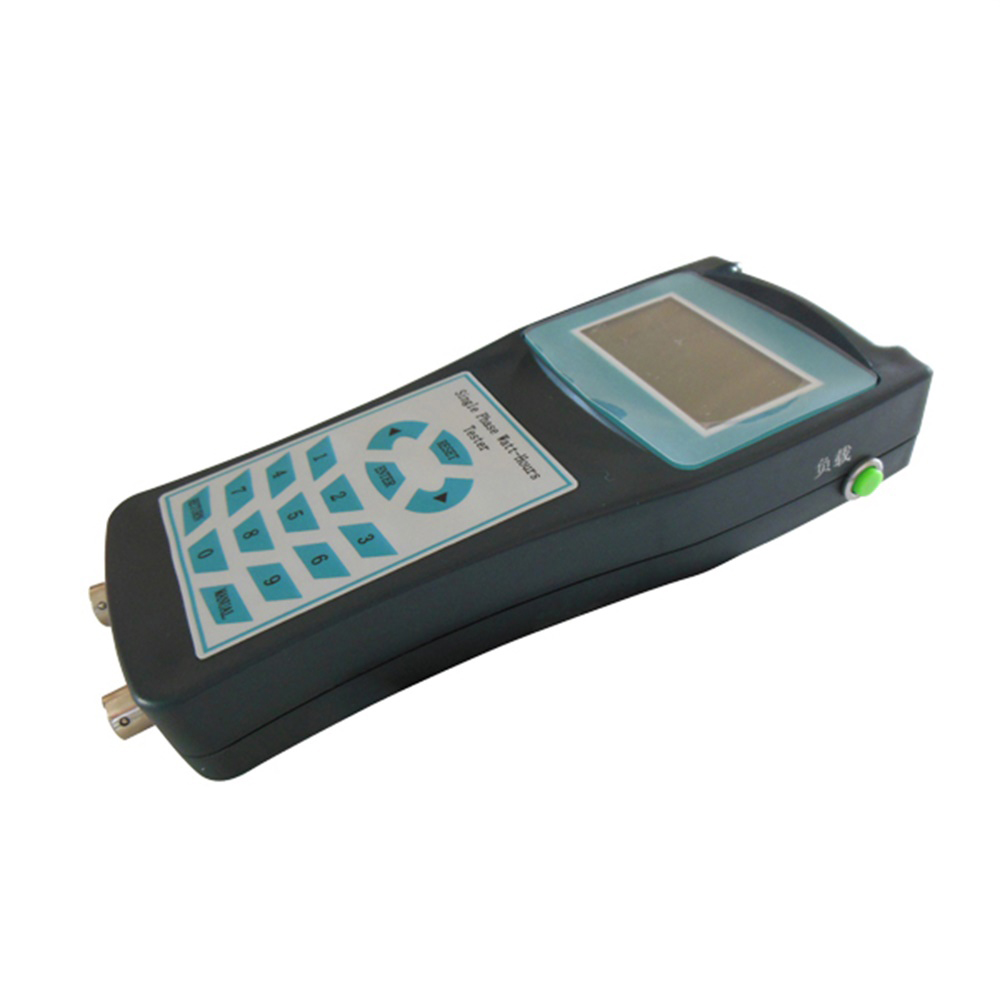

The Product Picture
