Outdoor Split Core Current Transformer , Open Current Transformer 0.5% Accuracy Class

Ask Lasest Price
Brand Name :	GFUVE
Model Number :	LMCK185-10 - 1
Certification :	IEC,ISO
Price :	Negotiable
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	10000 Pieces Per Month
Delivery Time :	3 - 7 Days

Add to Cart

Product Details
Company Profile

Outdoor Split Core Current Transformer , Open Current Transformer 0.5% Accuracy Class

0.5% IP65 Waterproof Split Core CT Outdoor Current Transformer

Outdoor current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This Type is flame retardance anti-moisture, stable performance, no maintenance.

Parameters

Technical parameters
Standards	IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006
Accuracy Class	0.5%, 1%
Range of primary rated current	300-3000A
Range of Rated load	≤25VA
Technical parameters - continued
Rated frequency	50/60Hz
Rated secondary current	5A or 1A
Secondary winding power frequency withstand voltage	3kV, 1min
Safety Factor Rating	(FS) <5
Flame retardant ABS plastic shell inside, jaw waterproof apron.
Mechanical parameters
Aperture (mm)	Φ185
Dimensions (W×D×H) (mm)	350×283×55
Weight (kg)	4.5
Working conditions
Operating temperature	-35°C to +55°C, not exceeding +40°C
Environment	outdoors or indoors
The height of above sea level	0- 3000m
Conditions	No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed.

Compare Datasheet

Model	Primary rated current	Rated load	Aperture (mm)	Description (mm)	Weight (kg)	Material	Water-proof
LZCK-55	100-1500A	≤10VA	φ55	180×138×52	2	PC	IP65
LMCK185-10	300-3000A	≤25VA	φ185	350×283×55	4.5	PC	IP65
LZCK310-10	300-600A	≤10VA	φ50	φ50 x φ110 x 32	1	Resin	silicon case (option)
LZCK322-10	30-600A	≤10VA	φ50	φ50 x φ110 x 52	1.6	Resin	silicon case (option)
LZCK350-10	20-600A	≤25VA	φ50	φ50 x φ110 x 105	3.1	Resin	silicon case (option)
LZCG530-10	30-600A	≤20VA	φ45	φ45 x φ120 x 65	2.1	Resin	silicon case (option)

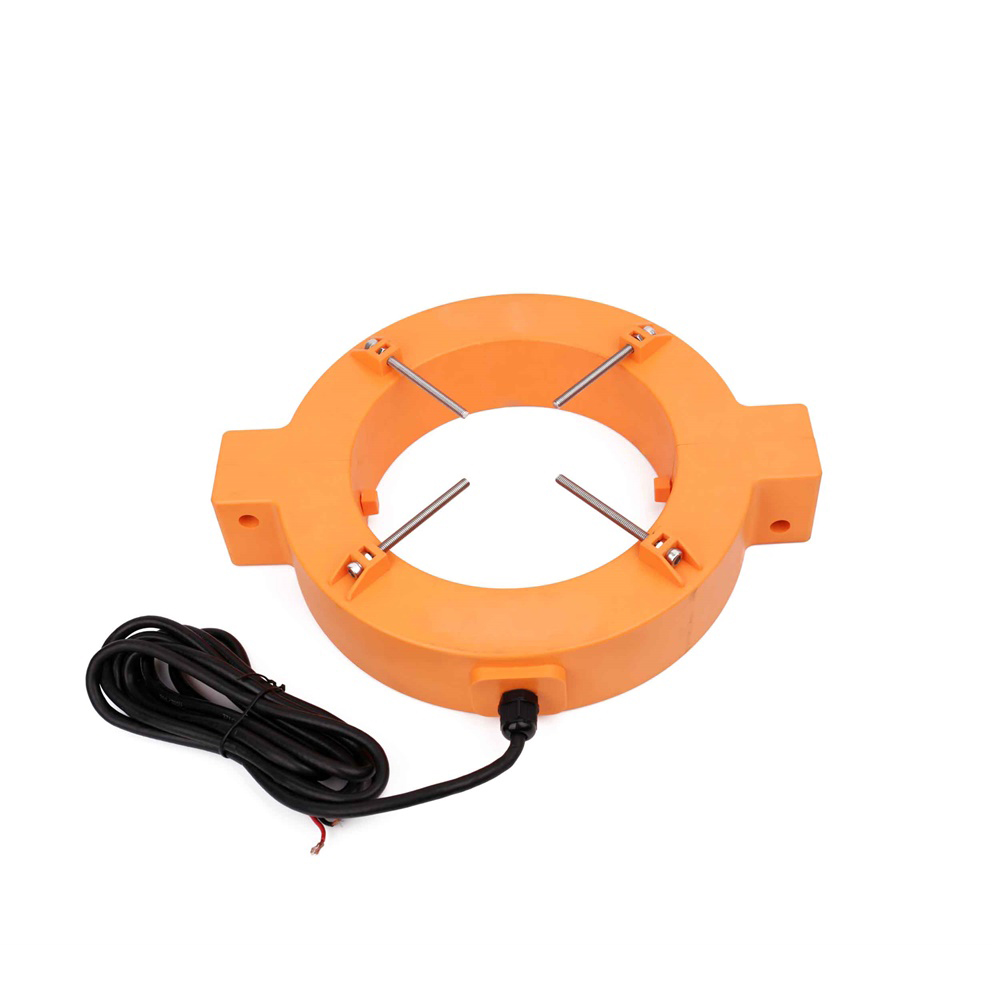

The Product Picture:
