Q110 4mm banana Cable Clamp On Current Transformer Current Clamp
600V Voltage 110mm Electricity Cable
5A Output AC Current Probe Q110 in China for 2000 : 5 With Class
0.5
In electrical and electronic engineering, a current clamp. current
probe is an electrical device having jaws which open to allow
clamping around an electrical conductor. This allows measurement of
the current in a conductor without the need to make physical
contact with it, or to disconnect it for insertion through the
probe.GFUVE Model Q110 current clamp is a high accuracy ct, the
advanced design ensures enhanced linearity and the jaw opening
system provides enhanced safety. GFUVE offer customize series based
on Q110 to apply in different testing conditions.This product can
be used in large current situation; also can cooperate to cable
fault tester and cable identification device, used for cable test
work.
Current probes are key to the successful design of electrical
devices, testing instruments, and electronic parts. Probes work
with testing devices are ideal for measuring currents with high
accuracy making them Indispensable tools for evaluating current
consumption and control current. In recent years, customers are
seeking current probes with high sensitivity to increase the
accuracy of design and verification.GFUVE offers wide range of
current sensors for its portable power analyzers. The products
included in this range can be used to measure current levels from a
few mA to up to several thousand amperes.
Clamp-On Current Transformers GFUVE® maintains a large in-stock
inventory of Clamp-On Current Transformers including AC, Micro
Clamp and Clamp-On CT Accessories for most common applications.
Below is a list of all clamp-on current transformers available
through GFUVE material, however, not all models are in-stock.
The GFUVE clamp-on current transformer is very popular with our
customers due to its fast and easy installation Produced with
amorphous silicon core or permalloy core, this product features
small size, high precision good stability and good
anti-interference This product is widely used for measuring power
and energy in the fields of electric power, communication and
monitoring system. Besides the high precision and the small phase
error this clamp-on current transformer can be used to measure a
wide variety of electric parameters without disconnecting the
exiting electric system.
Features:
Holding wire diameter: φ110mm
Dimension: 163mm×310mm×34mm
Load capacity: mA output≤4Ω,
1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Parameter
| Electrical parameters |
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.2%, 0.5%, 1% |
| Primary current | 0 - 1000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Max. Cont. Input current | 1200A |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | 500mA,1A,5A AC at nominal input current |
| Output signal (AC voltage) | 333mV,500mV,1V,5V AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) | 163 x 310 x 34 |
| Weight (g) | 900 |
| Holding wire diameter (mm) | φ110 |
| Max. jaw opening (mm) | 110 |
| Jaw color | Black |
| Material | PC+ABS+Polycarbonate, UL94 V0 |

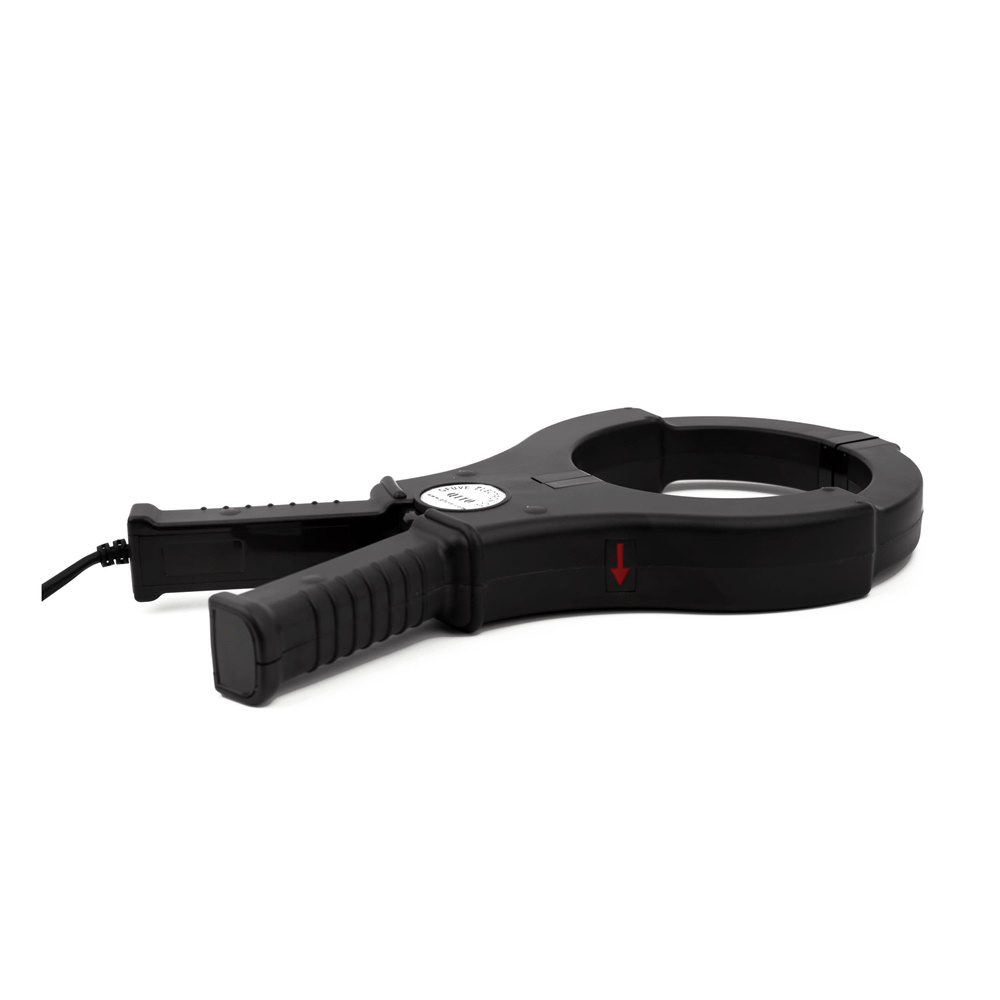

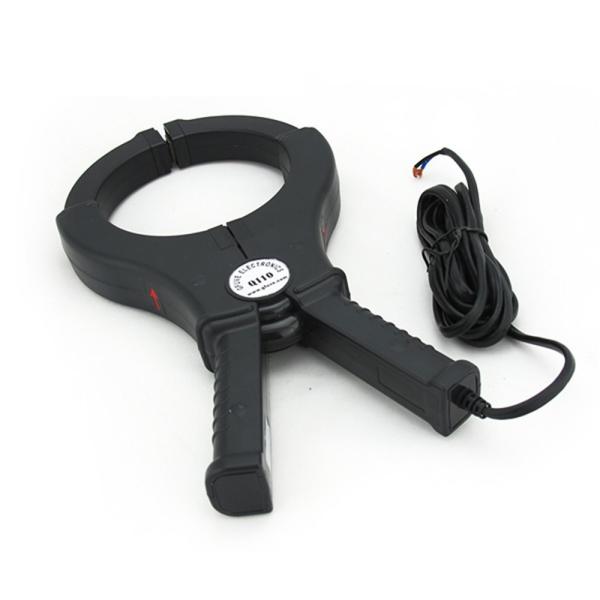

Photos
