Q8 GFUVE Ratio 10A / 10mA Split Core Amp Clamp On Current
Transformer Supplier Class 0.2
The GFUVE Split Core Current CTs are designed to extend the current
measuring capabilities of digital multimeters, power instruments,
oscilloscopes, power quality analyzer, recorders, and other wide
range instruments.
Clamp-On Current Transformers GFUVE® maintains a large in-stock
inventory of Clamp-On Current Transformers including AC, Micro
Clamp and Clamp-On CT Accessories for most common applications.
Below is a list of all clamp-on current transformers available
through GFUVE material, however, not all models are in-stock.

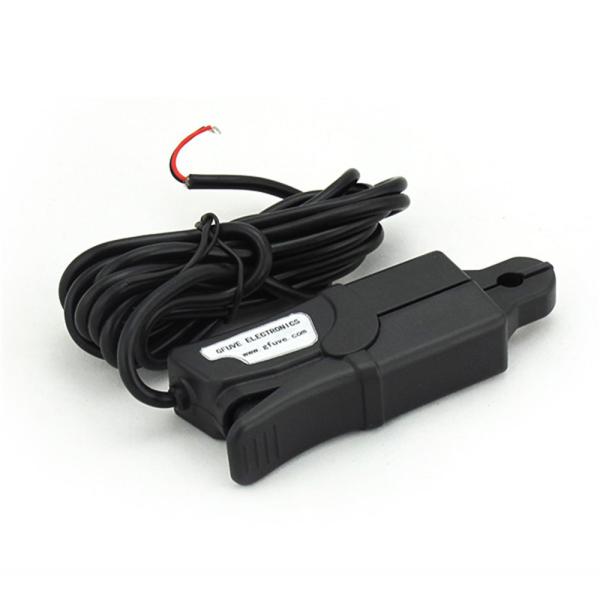

The model Q8-2 clamp-on current CT is suitable for 5A, 10A cable
online measurement, the user-friendly shape make It easily clamp
onto cables.
GFUVE Q8 Series of Clamp-On Current Transformer's are designed for
fast and easy installation. Clamp-On CT uses Permalloy Magnetic
Core or Silicon Amorphous Core, with characteristics of small size.
high precision, good stability and strong anti-interference
ability.
Three precision dual range current clamps (1 A/10 A) for secondary
current transformer applications.... GFUVE Set of 3 1 A/10 A Current Clamps Expand the capabilities of the GFUVE GF438II and
GF312V2 Series Loggers with the dual-range 1 A/10 A
Features
Suitable for 5A, 10A cable online measurement.
Holding wire diameter: φ8mm
Dimension: 42.6mm × 122.5mm × 23mm
Load capacity: ≤4Ω
Installation: clamp type
Output mode: lead output
Applications
Electric energy meter calibrator (on site)
Double clamp type ground resistance tester
Double clamp type phase volt-ampere meter
Digital multi-meter
Multi-function energy meter
Power quality analyzer
Matched instruments
Calibration instrument on site
Parameter
| Electrical parameters |
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.2%, 0.5% |
| Primary current | 0 - 10A AC |
| Secondary current | 0 - 10mA AC (customized) |
| Max. Cont. Input current | 12A |
| Load capacity | ≤4Ω |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | From 0 to 10mA AC at nominal input current |
| Output signal (AC voltage) | From 0 to 1V AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) | 42.6× 122.5 × 23 |
| Weight (g) | 225 |
| Holding wire diameter (mm) | φ8 |
| Max. jaw opening (mm) | 8 |
| Color | Gray |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
Photos
FAQ, following questions will help you to select the matched probe
for your applications.
1. Please determine if you are measuring AC or DC?
GFUVE Q8-2 is for AC measurement. If DC, we have hall effect models
to suggest.
2. What is the maximum current you will measure?
Q8-2 max current is 12A
3. What size conductor will you clamp onto? This parameter
determines the probe jaw size needed.
Q8-2 can clamp conductor with diameter within 8mm
4. What type of probe output do you need or can you work with (mA,
mV, A, AC, etc.)?
Q8-2 can customize output with mA
5. What is the working voltage of the conductor to be measured?
GFUVE probes should be used below 600 volts
6. What type of termination do you need: jacks, leads or BNC?
Q8-2 standard has 2.5meter leads. We can offer jacks or BNC… as
options.
7. If you cannot find information you need or would like
assistance, contact us today. We have designed many more probes
than those shown in this catalog, and we manufacture in Beijing,
China.
